X MODE Switch: Removal

  1. Disconnect the ground terminal from 12V engine restart battery sensor. Ref. to REPAIR CONTENTS>REPAIR CONTENTS>NOTE>BATTERY .
  2. Remove the cover assembly - front. Ref. to EXTERIOR/INTERIOR TRIM>CONSOLE BOX>REMOVAL .

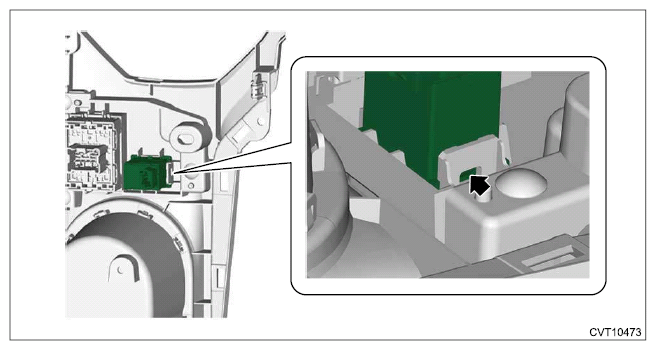

  3. Remove the X mode switch from the cover assembly - front.
G12393286Courtesy of SUBARU OF AMERICA, INC.
