Transmission Harness: Installation

  1. Connect the transmission harness to the control valve body. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR580 CROSSTREK)>CONTROL VALVE BODY>INSTALLATION .

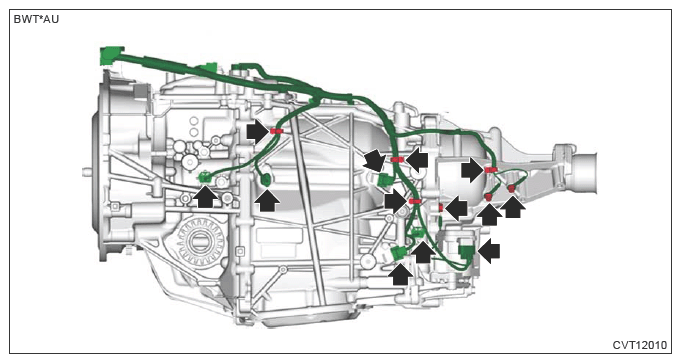

  2. Connect the connector and ground terminal as shown in the figure, and install the clips.

    Tightening torque:

    13 N.m (1.3 kgf-m, 9.6 ft-lb)

    G13603248Courtesy of SUBARU OF AMERICA, INC.
    G13603249Courtesy of SUBARU OF AMERICA, INC.
    G13603250Courtesy of SUBARU OF AMERICA, INC.
  3. Install the air breather hose. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR580 CROSSTREK)>AIR BREATHER HOSE>INSTALLATION .
