Drive Plate: Installation

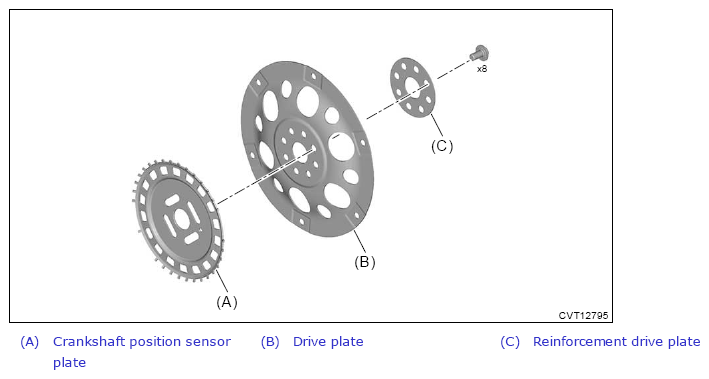

Temporarily attach the reinforcement drive plate, drive plate and crankshaft position sensor plate, and set the ST.
CAUTION: Install with the stamped mark of the crankshaft position sensor plate facing the transmission side.

NOTE: Align the knock pin hole of the crankshaft position sensor plate to the knock pin of the crankshaft to secure the knock pin.

Preparation tool:

ST: CRANKSHAFT STOPPER (498497300)

Courtesy of SUBARU OF AMERICA, INC.

Courtesy of SUBARU OF AMERICA, INC.
Tighten the bolts securing the drive plate.
1. Tighten the bolts securing the drive plate.
  Tightening torque:

  30 N.m (3.1 kgf-m, 22.1 ft-lb)
2. Using the angle gauge, tighten the bolts securing the drive plate to the specified angle.
  Tightening angle:

  30° - 35°
Install the transmission body. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR580 CROSSTREK)>TRANSMISSION ASSEMBLY>INSTALLATION .
