Except For Hybrid Model

Impreza model

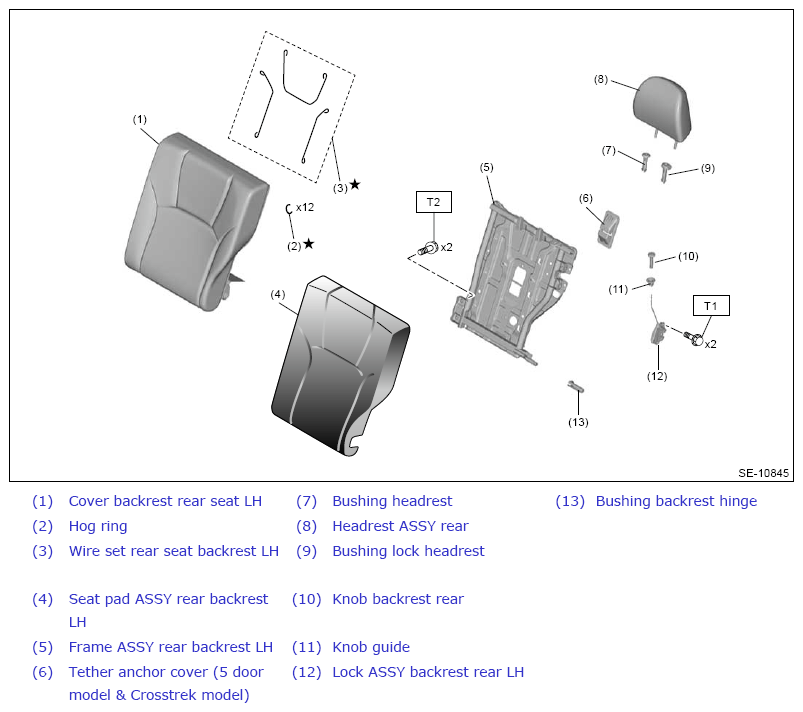

Fig 1: Rear Seat Components (With Torque Specifications) - Except For Hybrid Model (Impreza Model)

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 18 (1.8, 13.3)

T2: 24.5 (2.5, 18.1)

T3: 29 (3.0, 21.4)

T4: 33 (3.4, 24.3)

Crosstrek model

Fig 2: Rear Seat Components (With Torque Specifications) - Except For Hybrid Model (Crosstrek Model)

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 18 (1.8, 13.3)

T2: 24.5 (2.5, 18.1)

T3: 29 (3.0, 21.4)

T4: 33 (3.4, 24.3)

Impreza model

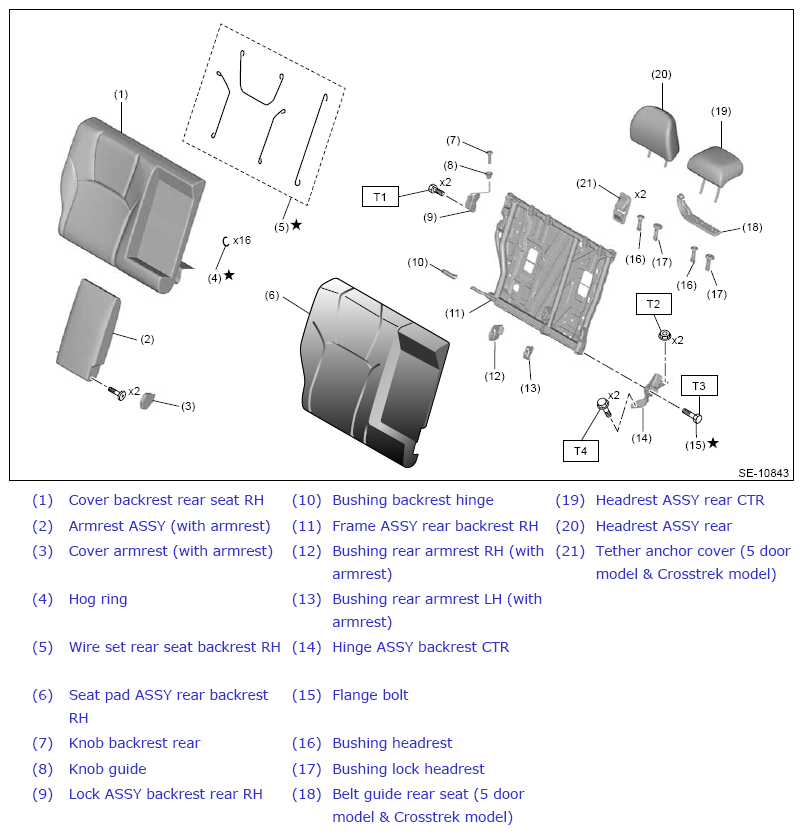

Fig 3: Rear Seat Components (With Torque Specifications) - Except For Hybrid Model (Impreza Model)

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 18 (1.8, 13.3)

T2: 33 (3.4, 24.3)

Crosstrek model

Fig 4: Rear Seat Components (With Torque Specifications) - Except For Hybrid Model (Crosstrek Model)

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 18 (1.8, 13.3)

T2: 33 (3.4, 24.3)

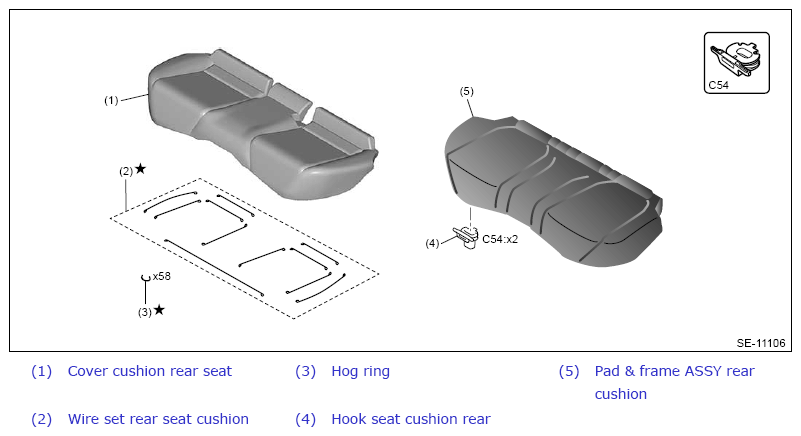

Impreza model

Courtesy of SUBARU OF AMERICA, INC.

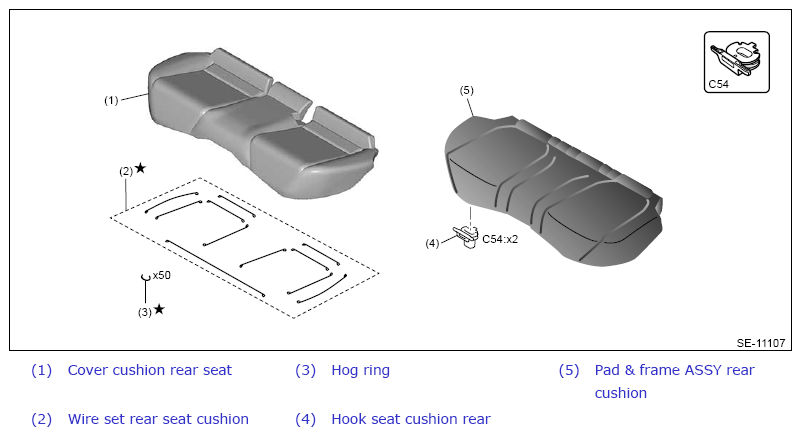

Crosstrek model

Courtesy of SUBARU OF AMERICA, INC.

Fig 5: Rear Seat Components (With Torque Specifications) - Except For Hybrid Model (Crosstrek Model)

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 25 (2.5, 18.4)

T2: 33 (3.4, 24.3)
