Unit Inspection
WARNING: This page is about a different car, the 2018 Subaru BRZ. However, it is still accessible from the selected car via links, so may be relevant.
- Inspection of the map light ASSY
- Illumination condition check for the map light

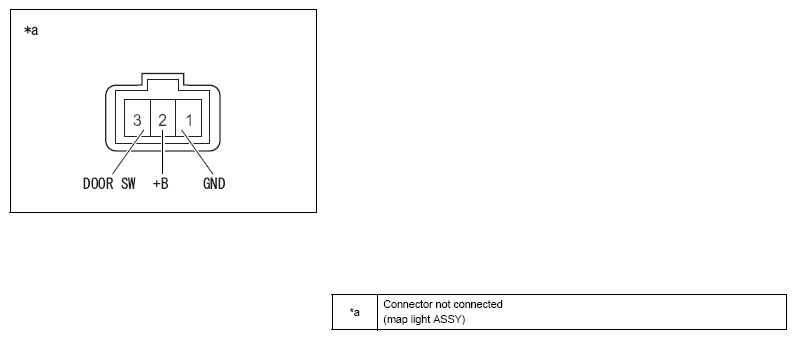

- Check the illumination condition of the map light when battery voltage is applied between the connector terminals.
Criteria
Battery connection Inspection conditions Criteria Battery positive terminal →2(+B)
Battery ground terminal →1(GND)Map light switch ON The map light illuminates. Battery positive terminal →2(+B)
Battery ground terminal →3(DOOR SW)Map light switch DOOR The map light illuminates.
- Check the illumination condition of the map light when battery voltage is applied between the connector terminals.
- Illumination condition check for the map light
