Personal Map Light: Removal

WARNING: This page is about a different car, the 2018 Subaru BRZ. However, it is still accessible from the selected car via links, so may be relevant.
  1. Removal of the map light ASSY

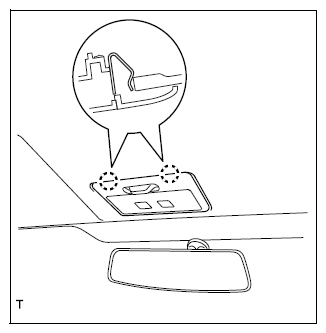

    1. Release the 2 tabs.
      G12589500Courtesy of SUBARU OF AMERICA, INC.

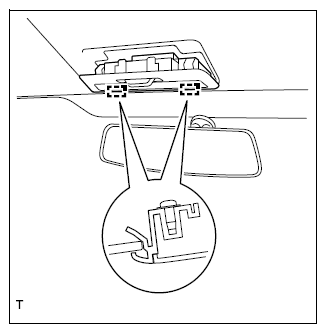

    2. Release two guides and disconnect the map light ASSY.
      G12589501Courtesy of SUBARU OF AMERICA, INC.

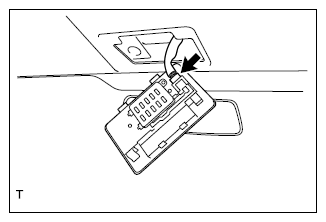

    3. Disconnect the connector and remove the map light ASSY.
      G12589502Courtesy of SUBARU OF AMERICA, INC.
  2. Removal of the map light lens NO. 1

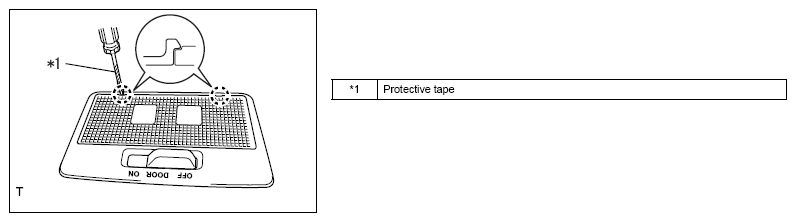

    1. Release two claws by using a fine flat tip screwdriver wrapped with protective tape, and remove the map light lens NO. 1.
      G12589503Courtesy of SUBARU OF AMERICA, INC.
  3. Removal of the map light bulb
    1. Remove the map light bulb.
