Circuit description

WARNING: This page is about a different car, the 2018 Subaru BRZ. However, it is still accessible from the selected car via links, so may be relevant.

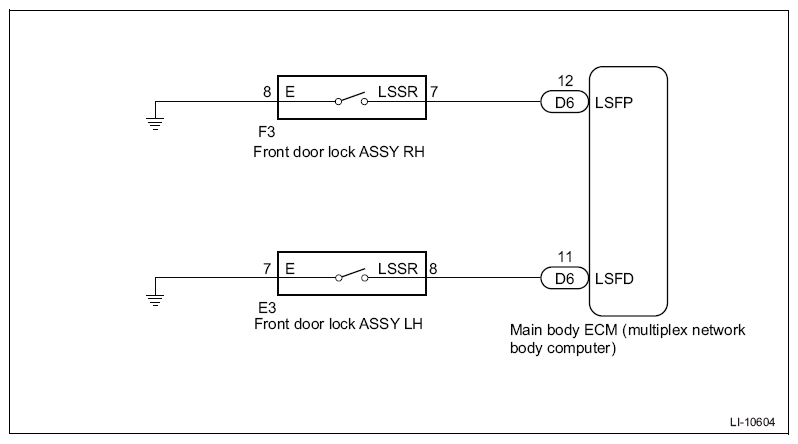

The main body ECM (multiplex network body computer) is receiving the door lock position switch signal from each door.

G12589481Courtesy of SUBARU OF AMERICA, INC.
