Unit Inspection
WARNING: This page is about a different car, the 2018 Subaru BRZ. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of SUBARU OF AMERICA, INC.
|

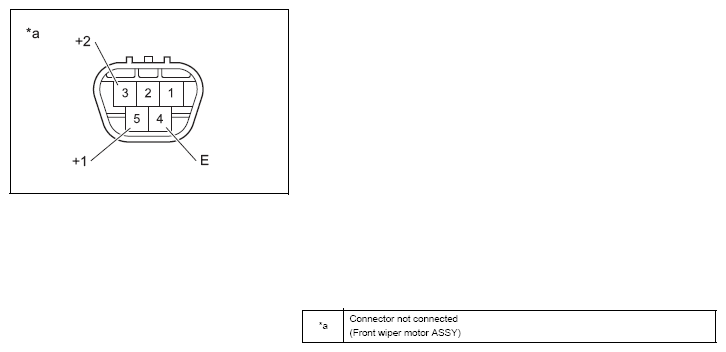

- Inspection of the front wiper motor ASSY
- LO operation inspection
- Inspect the front wiper motor ASSY operation when battery voltage is applied to each connector terminal.
BATTERY CONNECTION DESCRIPTION - CRITERIA
| Battery connection |
Criteria |
Battery positive →5 (+1)
Battery ground →4 (E) |
Operates at low speed (LO) |
- HI operation inspection
- Inspect the front wiper motor ASSY operation when battery voltage is applied to each connector terminal.
BATTERY CONNECTION DESCRIPTION - CRITERIA
| Battery connection |
Criteria |
Battery positive →3 (+2)
Battery ground →4 (E) |
Operates at high speed (HI) |
