Power Steering Computer: Removal

  1. Correct handling and precautions for operation (Refer to POWER STEERING SYSTEM )
  2. Remove the instrument panel junction block ASSY (Refer to REMOVAL )
  3. Remove the power steering computer ASSY

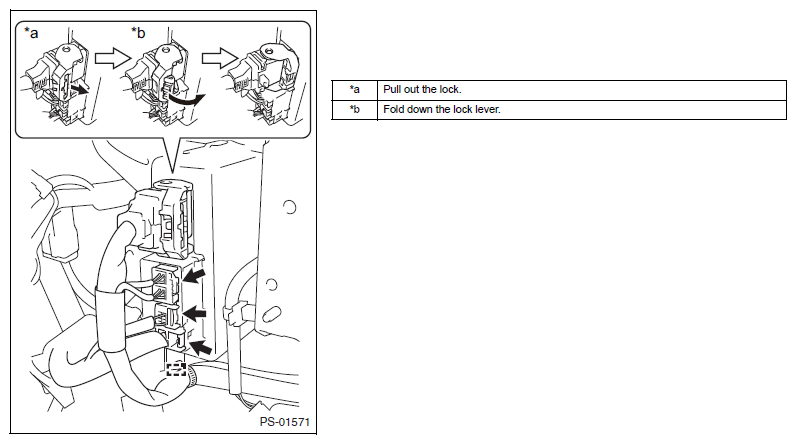

    1. Disconnect the connector from the power steering computer ASSY.
      G12591250Courtesy of SUBARU OF AMERICA, INC.
      NOTE: As shown in the figure, after pulling out the lock for the lock lever, fold down the lock lever and remove the connector.
    2. Disconnect the wiring harness clamp from the power steering computer bracket.
    3. Disconnect the three connectors from the power steering computer ASSY.

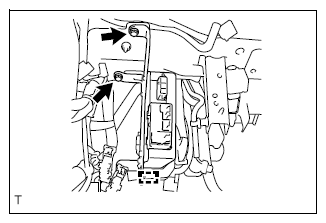

    4. Undo the two bolts, release the clamp, and take off the power steering computer ASSY.
      G12591251Courtesy of SUBARU OF AMERICA, INC.
  4. Remove the power steering computer bracket.

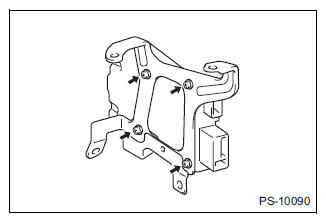

    1. Undo the 4 screws and take off the power steering computer bracket.
      G11260913Courtesy of SUBARU OF AMERICA, INC.
