Components With Torque Specifications: INTERCOOLER

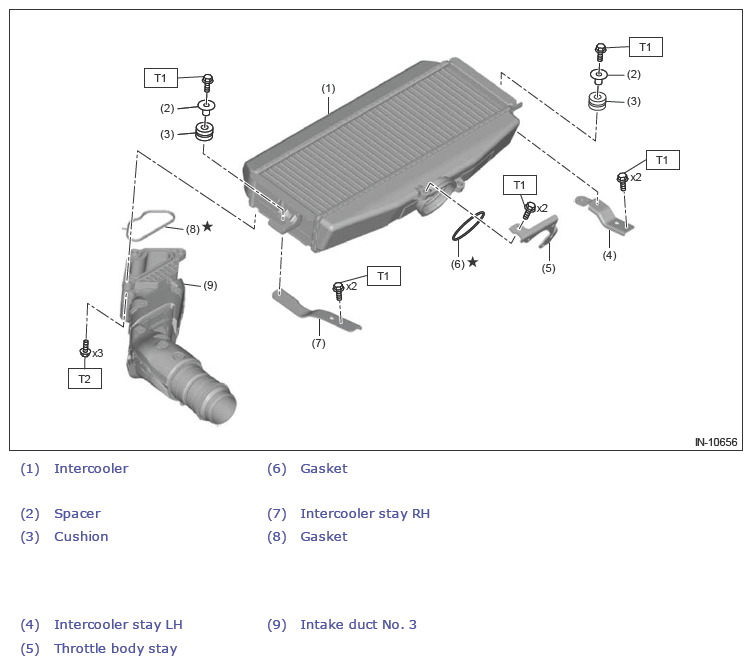

Fig 1: Intercooler Components Location (With Tightening Torque Specification)

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 16 (1.6, 11.8)

T2:  Ref. to INTAKE (INDUCTION) (H4DOTC)>INTERCOOLER>ASSEMBLY .
