Engine Cooling System: Radiator: Removal

CAUTION:
  • The engine coolant is pressurized when it is hot. Wait until engine coolant cools down before proceeding the work.
  • If the engine coolant is spilt over the engine, exhaust pipe or the under cover, completely wipe it off to avoid emission of smoke or causing a fire.
  1. Disconnect the ground cable from battery. Ref. to REPAIR CONTENTS>NOTE>BATTERY .
  2. Remove the V-belt covers.
    G13198725Courtesy of SUBARU OF AMERICA, INC.
  3. Drain engine coolant, Ref. to COOLING (H4DOTC)>ENGINE COOLANT>REPLACEMENT .
  4. Remove the center exhaust pipe (front), Ref. to EXHAUST (H4DOTC)>CENTER EXHAUST PIPE>REMOVAL>CENTER EXHAUST PIPE (FRONT) .
  5. Remove the radiator fan and fan motor assembly, Ref. to COOLING (H4DOTC)>RADIATOR FAN AND FAN MOTOR ASSEMBLY>REMOVAL .
  6. Disconnect the radiator inlet hose and radiator outlet hose.
    G13199111Courtesy of SUBARU OF AMERICA, INC.
  7. Remove the bracket grille front.
    G13199112Courtesy of SUBARU OF AMERICA, INC.
  8. Remove the radiator upper bracket.
    G13199113Courtesy of SUBARU OF AMERICA, INC.
  9. Disconnect the condenser assembly air conditioner and the radiator.
    G13199114Courtesy of SUBARU OF AMERICA, INC.
  10. Remove the pipe evaporator cooling from the clip.
    G13199115Courtesy of SUBARU OF AMERICA, INC.

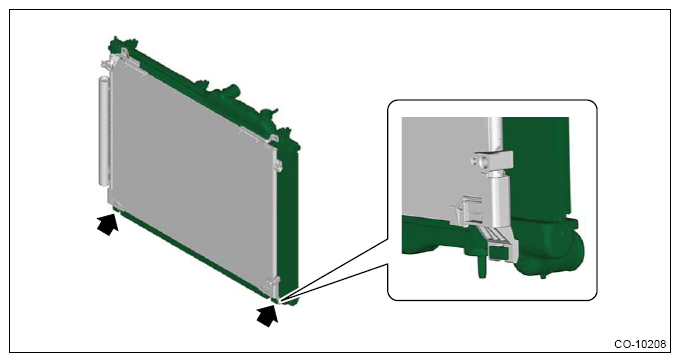

  11. Disengage the claws, and separate the radiator and the condenser assembly air conditioner.
    CAUTION:
    • Be careful not to damage the condenser assembly air conditioner and the radiator fin.
    • If a damaged fin is found, repair it using a thin screwdriver.
    G13199116Courtesy of SUBARU OF AMERICA, INC.
  12. Remove the radiator, and secure the condenser assembly air conditioner to the vehicle using ropes etc.
    NOTE: This procedure is required to prevent the condenser assembly air conditioner from dropping off, and also the pipe evaporator cooling from being damaged.
    G13199117Courtesy of SUBARU OF AMERICA, INC.
  13. Remove the radiator upper bracket and radiator lower bracket.
    NOTE: Remove if necessary.
    G13199118Courtesy of SUBARU OF AMERICA, INC.
