Relay and Fuse: Location

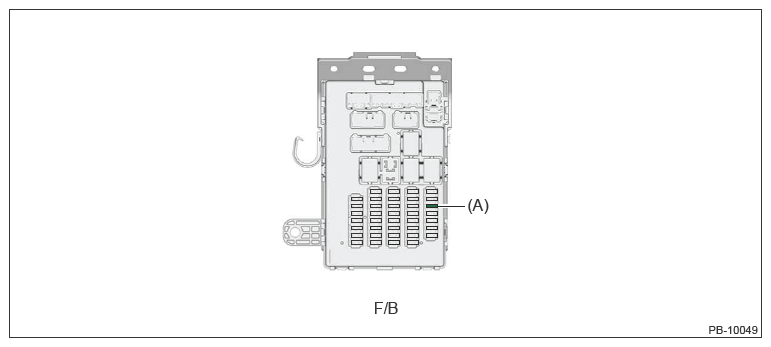

| Fuse & relay box (F/B) | Fuse 10 A (EPB control switch) | (A) |
NOTE:
For other related fuses, refer to the wiring diagram. Ref. to WIRING SYSTEM>POWER SUPPLY CIRCUIT
.
| Fuse & relay box (F/B) | Fuse 10 A (EPB control switch) | (A) |
