Rear Door Glass: Installation

Install the glass assembly rear door and hold it at the upper end position.
CAUTION:
- Avoid impact and damage to the glass assembly - rear door.
- Move the sash assembly rear lower with minimal motion to remove the glass assembly rear door. The double-sided tape on the cover C pillar assembly rear may come off.
Install the sash assembly rear lower.

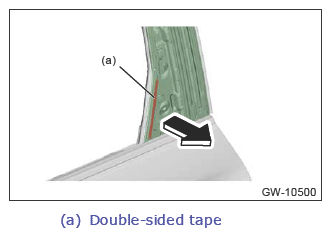

CAUTION: Turn over the running channel rear door and lightly pull the cover C pillar assembly rear in the arrow direction, then visually check that the double-sided tape does not come off. If it comes off, replace the cover C pillar assembly rear with a new part.

Courtesy of SUBARU OF AMERICA, INC.

NOTE: Tighten the bolts and nuts on the upper and lower sides of the sash assembly rear lower.

Tightening torque:

7.5 N.m (0.8 kgf-m, 5.5 ft-lb)
Install the regulator and motor assembly rear. Ref. to GLASS/WINDOWS/MIRRORS>REAR REGULATOR AND MOTOR ASSEMBLY>INSTALLATION .
Install the rear sealing cover.
Install the trim panel rear door. Ref. to EXTERIOR/INTERIOR TRIM>DOOR TRIM>INSTALLATION .
Connect the battery ground terminal. Ref. to REPAIR CONTENTS>NOTE>BATTERY>GROUND TERMINAL REMOVAL OR INSTALLATION .
Check the glass assembly rear door operation.
