Third Seat: Disassembly

  1. Prior to starting work, check the following precautions. Ref. to SEATS>GENERAL DESCRIPTION>CAUTION .
  2. Remove the third-row seats. Ref. to SEATS>THIRD SEAT>REMOVAL .
  3. Remove the headrest assembly.
  4. Remove the J-hooks, and remove the cover third-row seat cushion and the seat pad assembly cushion third.

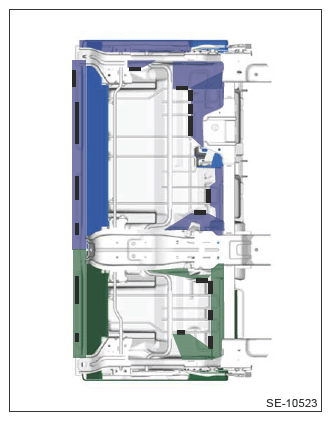

    G13200763Courtesy of SUBARU OF AMERICA, INC.
  5. Remove the seat belt.
    1. Remove the bolts, then remove the belt assembly third INN.

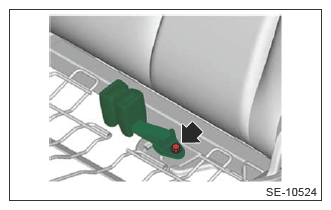

      G13200764Courtesy of SUBARU OF AMERICA, INC.
    2. Remove the bolts, then remove the belt assembly third INN CTR.

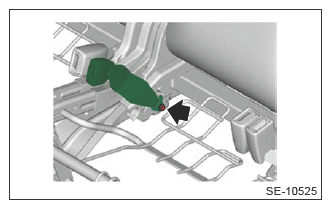

      G13200765Courtesy of SUBARU OF AMERICA, INC.

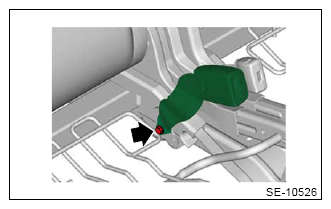

    3. Remove the bolts, then remove the belt assembly third INN RH.
    G13200766Courtesy of SUBARU OF AMERICA, INC.
  6. Remove the board backrest.
    1. Remove the cover tether.
      CAUTION:
      • Removing forcibly may damage the claws of the cover tether.
      • Do not reuse the cover tether if its claw is damaged.
      • Pay attention to the burrs on the panel edge.

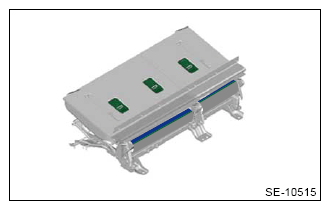

      G13201354Courtesy of SUBARU OF AMERICA, INC.

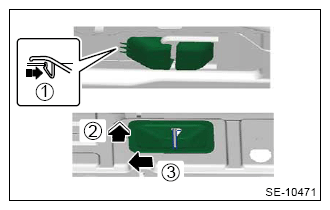

      G13201262Courtesy of SUBARU OF AMERICA, INC.
      NOTE:
      • If the cover tether is difficult to remove, release the board backrest first.
      • Remove the cover tether while pulling up the pad & cover by inserting your hand from the inside of board backrest and pad.
    2. Remove the following items and turn over the cover third-row seat backrest.
      • Plastic fastener
      • Clip
      • J-fastener

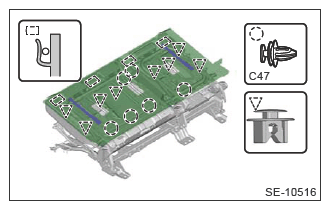

      G13201356Courtesy of SUBARU OF AMERICA, INC.
    3. Remove the strap rising from the arm located in the seat frame.

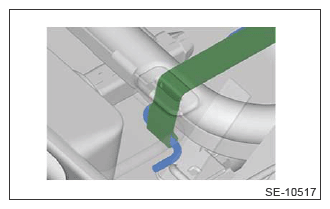

    G13201357Courtesy of SUBARU OF AMERICA, INC.
  7. Remove the cover third-row seat backrest and the seat pad assembly backrest third.
    1. Remove the strap reclining from the arm located in the seat frame.

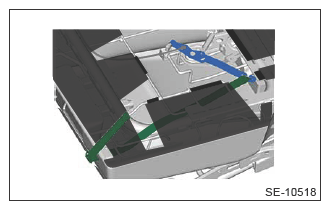

      G13201358Courtesy of SUBARU OF AMERICA, INC.
      NOTE: Remember the strap routing.
    2. Remove the screws to remove the strap guide.

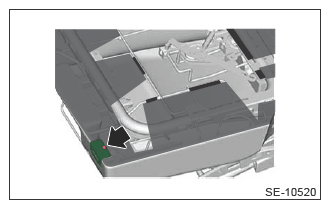

      G13201359Courtesy of SUBARU OF AMERICA, INC.
    3. Remove the bushing headrest.

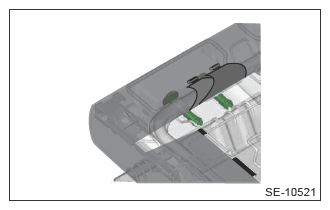

      G13201360Courtesy of SUBARU OF AMERICA, INC.
      NOTE: Catch the tip of the bushing headrest with pliers and push it outward from the inside of seat to remove it.
    4. Open the cap of the finisher cushion side frame third, and remove the bolt inside.

      Preparation tool:

      TORX® T40

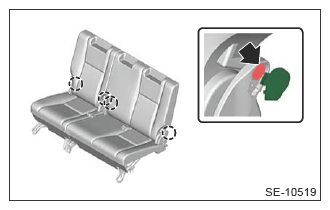

      G13201361Courtesy of SUBARU OF AMERICA, INC.
    5. Remove the J-hooks, and remove the cover third-row seat backrest and the seat pad assembly backrest third from the seat frame assembly.

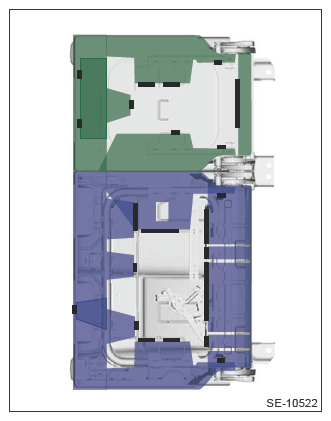

    G13201362Courtesy of SUBARU OF AMERICA, INC.
  8. Remove the screws, and then remove the back side cover.

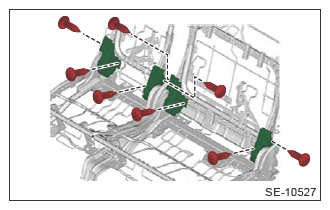

    G13201363Courtesy of SUBARU OF AMERICA, INC.
  9. Release the screws, clips and claws, and then remove the following items.
    • Finisher cushion side frame third outside LH/RH
    • Finisher B LWR reclining outside LH/RH
    • Finisher cushion side frame third inside LH/RH
    • Finisher B LWR reclining inside LH/RH

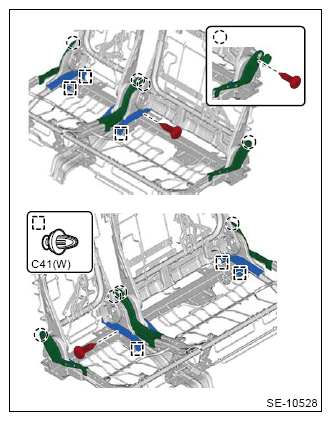

    G13201364Courtesy of SUBARU OF AMERICA, INC.
  10. Remove the screws, and then remove the following parts.
    • Finisher A LWR reclining assembly outside LH/RH
    • Reclining base cover LH/RH

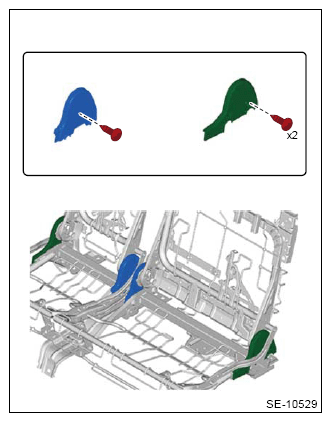

    G13201365Courtesy of SUBARU OF AMERICA, INC.
  11. Remove each seat cable.
    G13201366Courtesy of SUBARU OF AMERICA, INC.
  12. Remove the seat surface from the seat pad.
    1. Remove the hog rings, then remove the cover third-row seat backrest.
      G13201367Courtesy of SUBARU OF AMERICA, INC.
    2. Remove the hog rings, then remove the cover third-row seat cushion.
    G13201368Courtesy of SUBARU OF AMERICA, INC.
  13. Remove the screws, and then remove the following parts.

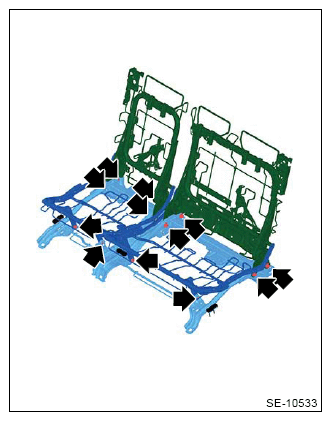

    G13201369Courtesy of SUBARU OF AMERICA, INC.
