Check List for Interview: Check

Inspect the following items regarding the vehicle's state.

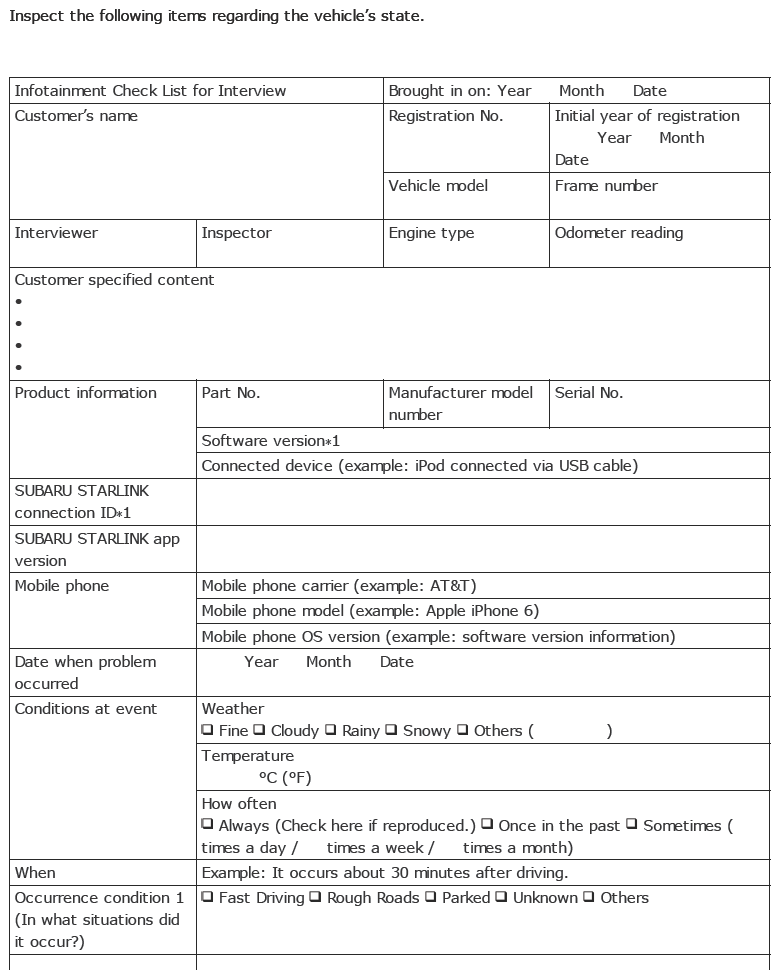

G13203487Courtesy of SUBARU OF AMERICA, INC.

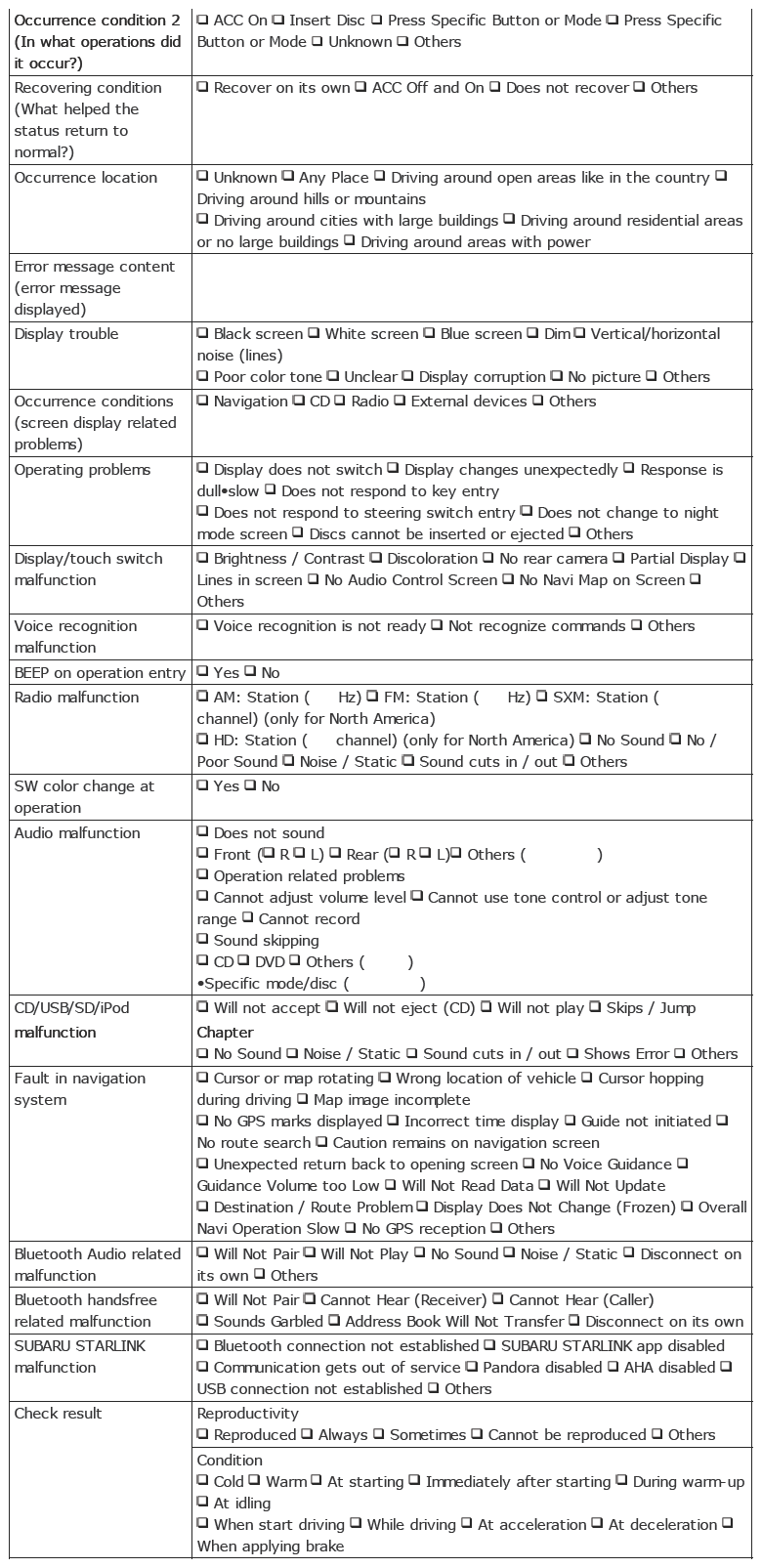

G13203488Courtesy of SUBARU OF AMERICA, INC.

*1: For each confirmation procedure, refer to the corresponding service diagnostics mode. Ref. to INFOTAINMENT (DIAGNOSTICS)>SERVICE DIAGNOSTICS MODE>OPERATION .
