Radiator Fan Control Module (Main)

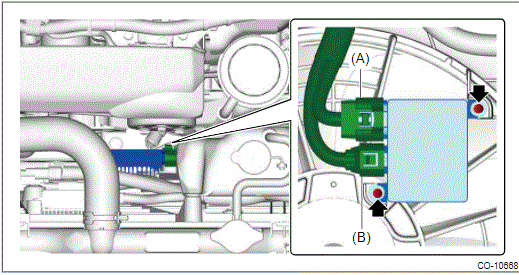

  1. Install the radiator fan control module (main), and connect the connector (A) and connector (B).

    Tightening torque:  2.6N.m (0.3kgf-m, 1.9ft-lb)

    G00596978Courtesy of SUBARU OF AMERICA, INC.
  2. Connect the ground terminal to battery sensor. Ref. to BATTERY .
