Communication Devices
>>
Body Control System (Diagnostics)
>>
General Description
>>

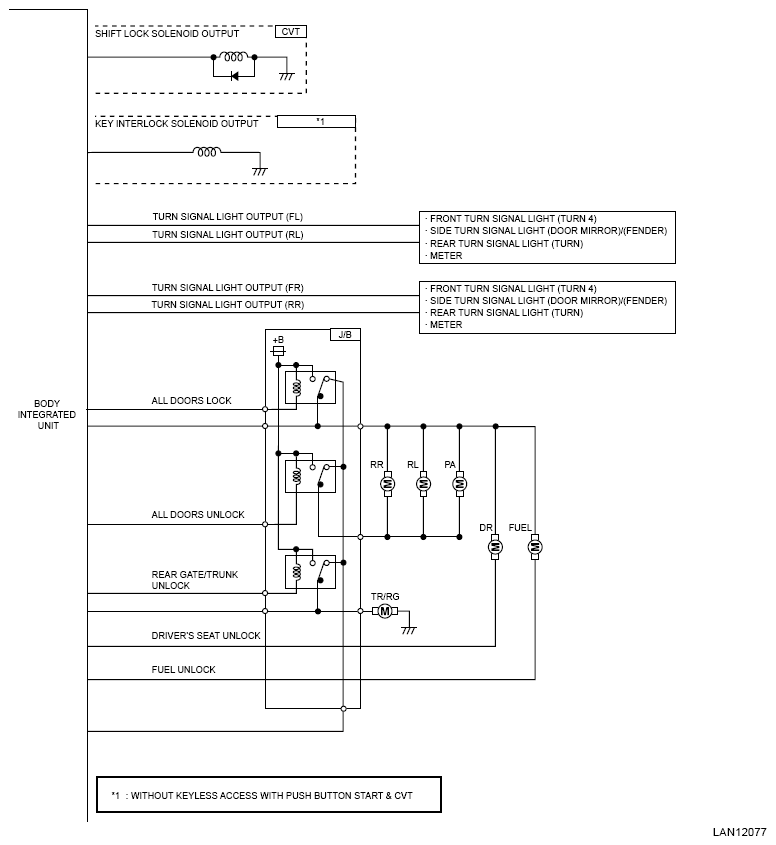

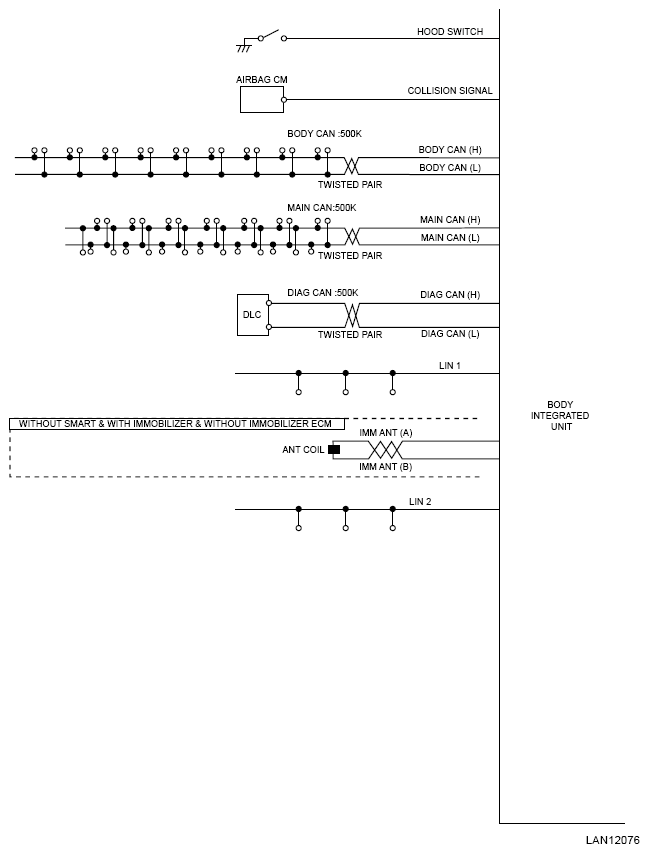

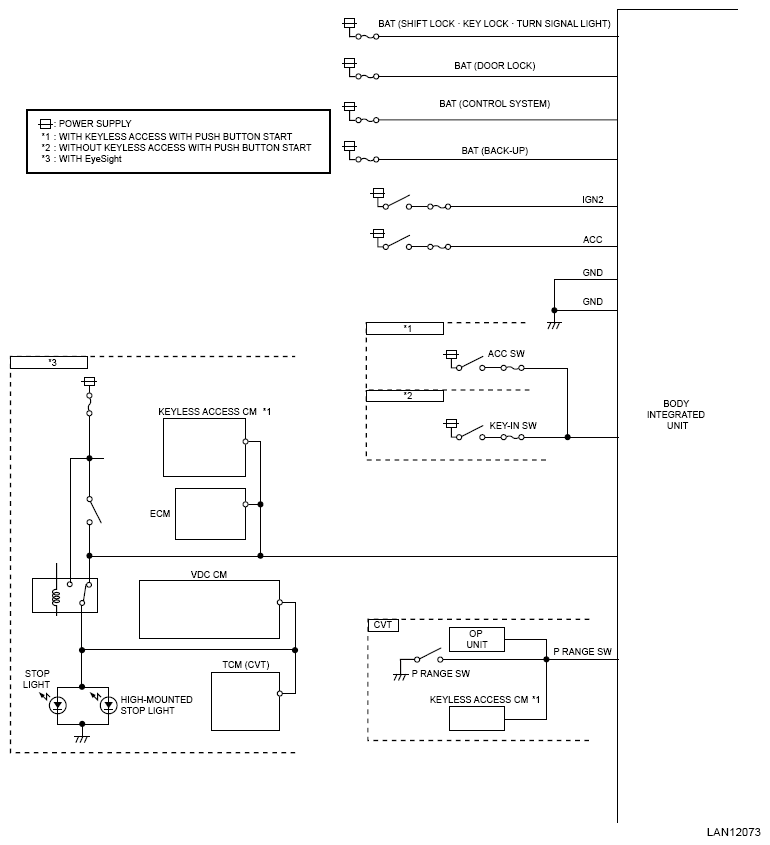

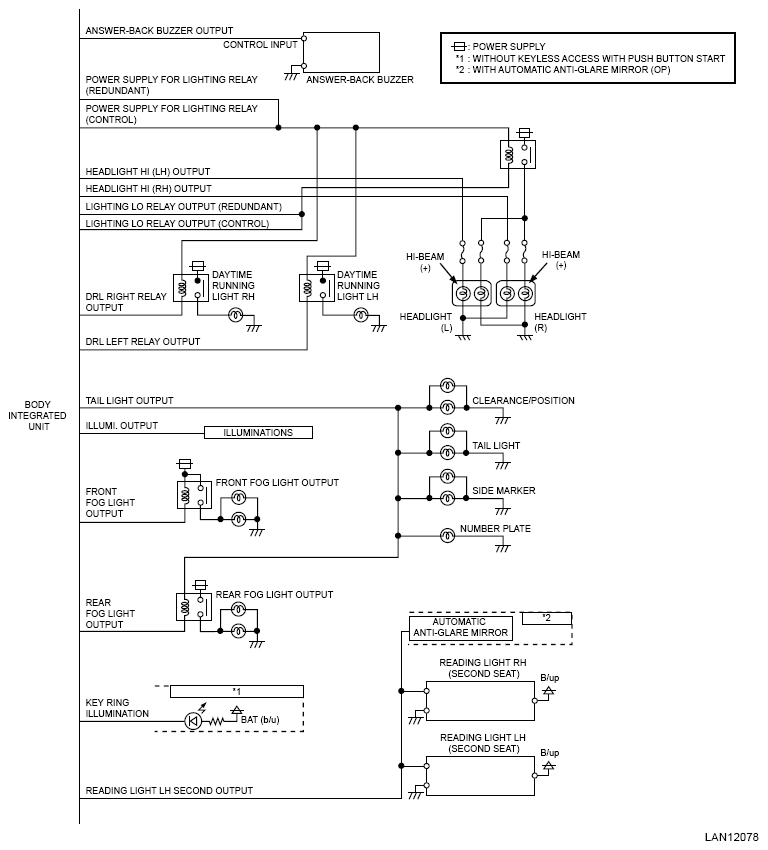

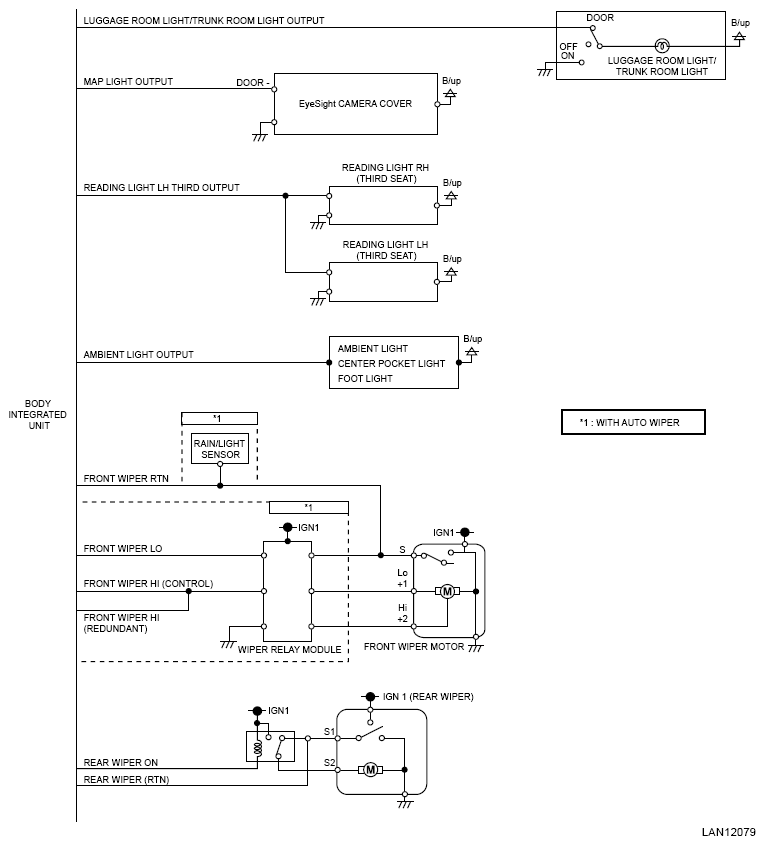

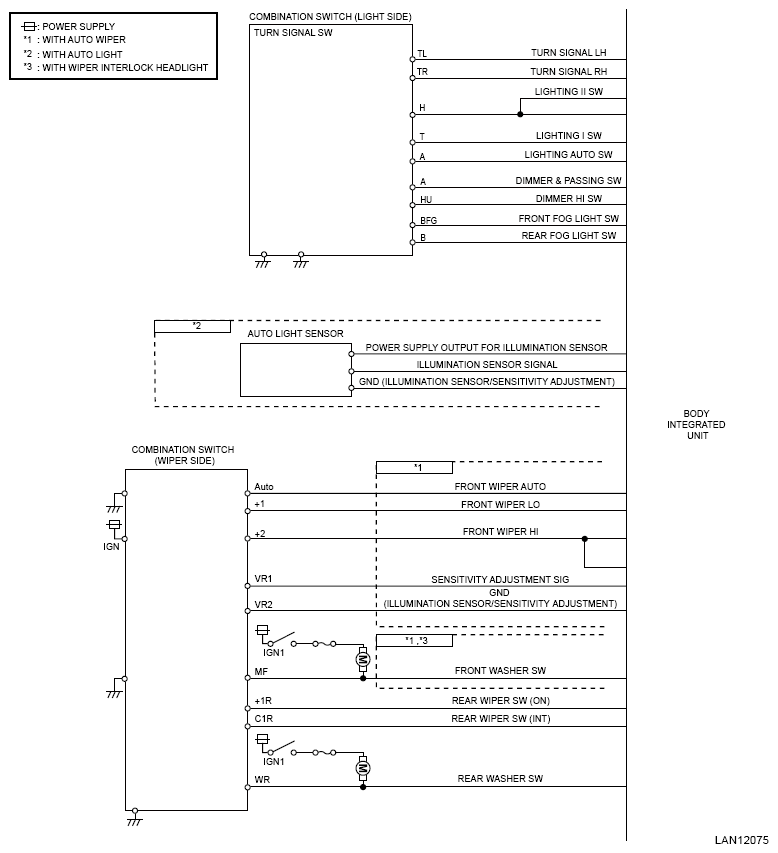

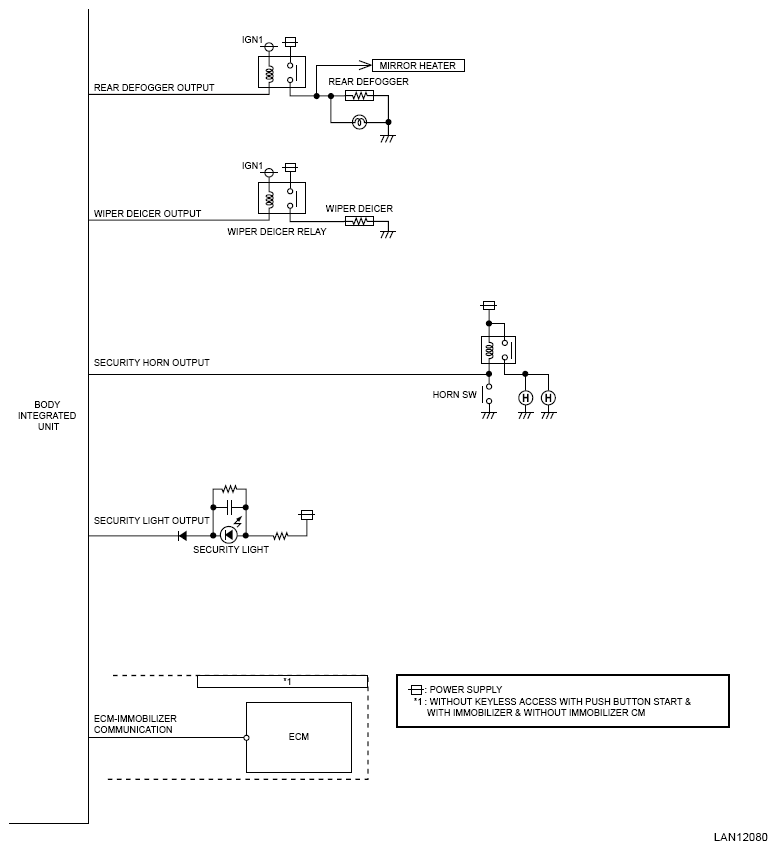

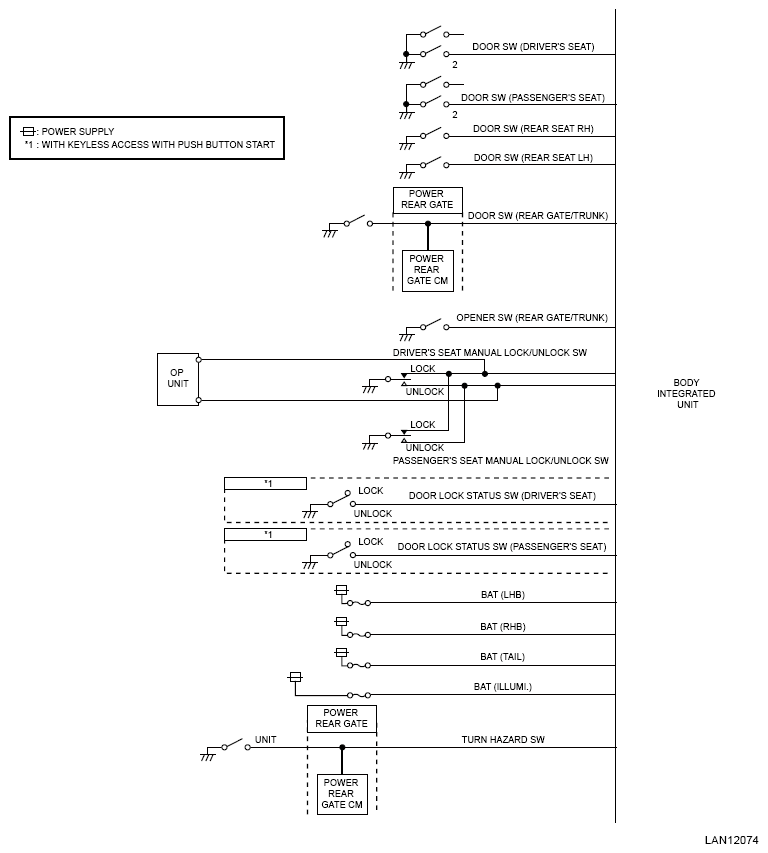

System Block Diagram
System Block Diagram
