Relay And Fuse: Location

Courtesy of SUBARU OF AMERICA, INC.

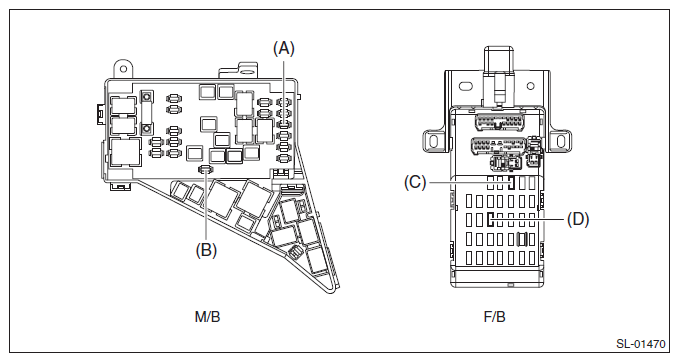

Main fuse box	Fuse 15 A (turn signal & hazard unit, body integrated unit, key warning switch)	(A)
Main fuse box	Fuse 20 A (body integrated unit, immobilizer antenna)	(B)
Relay & fuse box	Fuse 15 A (body integrated unit)	(C)
Relay & fuse box	Fuse 10 A (keyless access control module, TPMS & keyless entry control module)	(D)

NOTE: For other related fuses, refer to the wiring diagram. Refer to WIRING SYSTEM>POWER SUPPLY CIRCUIT .
