Stator Coil
WARNING: This page is about a different variant/trim than selected.

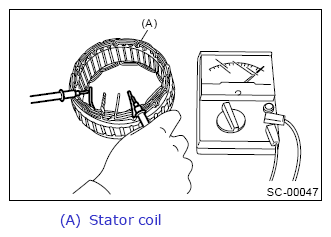

- Inspect continuity between the stator coil lead wire terminals. If the resistance is 1 MΩ or more, replace the stator coil.
 Courtesy of SUBARU OF AMERICA, INC.
|
- Inspect the continuity between the stator coil stator core and lead wire terminals. If the resistance is 1 Ω or less, replace the stator coil.
 Courtesy of SUBARU OF AMERICA, INC.
|
