Oil Pump Chain: Removal

  1. Remove the transmission assembly from the vehicle. Refer to CONTINUOUSLY VARIABLE TRANSMISSION (TR690)>AUTOMATIC TRANSMISSION ASSEMBLY>REMOVAL .
  2. Remove the torque converter assembly. Refer to CONTINUOUSLY VARIABLE TRANSMISSION (TR690)>TORQUE CONVERTER ASSEMBLY>REMOVAL .

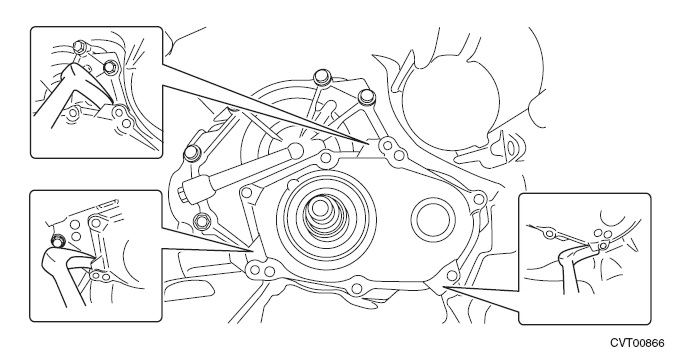

  3. Remove the oil pump chain cover.
    G06654740Courtesy of SUBARU OF AMERICA, INC.
    G10276405Courtesy of SUBARU OF AMERICA, INC.
  4. Remove the seal ring from center support COMPL.
    G13250494Courtesy of SUBARU OF AMERICA, INC.
  5. Remove the driven sprocket from oil pump chain cover to remove the oil pump chain.
    NOTE: The driven sprocket is replaced as an assembly only, because it is a non-disassembly part.
    G06654742Courtesy of SUBARU OF AMERICA, INC.
  6. Remove the snap ring.
    G06654743Courtesy of SUBARU OF AMERICA, INC.
  7. Remove the drive sprocket.
    G06654744Courtesy of SUBARU OF AMERICA, INC.
  8. Remove the oil seal from the oil pump chain cover.
