DTC B1613: Front Sub Sensor RH Initialization Error

Diagnosis start condition:

Ignition voltage is 10 V to 16 V.

DTC detecting condition:

• Open or short circuit in harness of front sensor bus RH
• Front sub sensor RH is faulty.
• Airbag control module is faulty.
  CAUTION: Before performing diagnosis, refer to "CAUTION" in "General Description". Refer to AIRBAG SYSTEM (DIAGNOSTICS)>GENERAL DESCRIPTION>CAUTION .

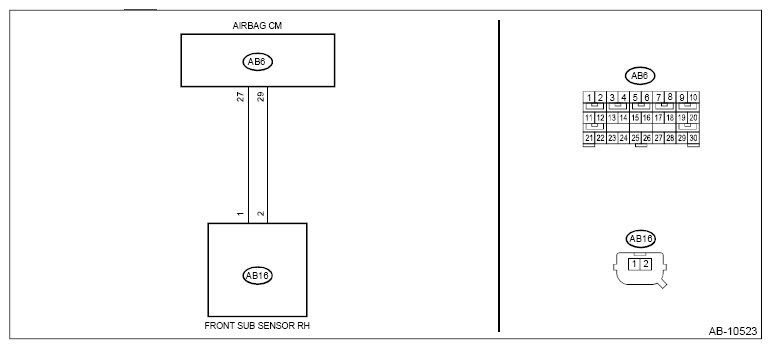

Wiring diagram:

Airbag system Refer to WIRING SYSTEM>AIRBAG SYSTEM>WIRING DIAGRAM .

Courtesy of SUBARU OF AMERICA, INC.

1. CHECK POOR CONTACT OF CONNECTORS.

   Check for poor contact of the connectors (AB6, AB16) between the airbag control module and the front sub sensor RH.

   Is there poor contact?

   Yes:  Replace the airbag main harness along with body harness.

   No:  Go to  2.

2. CHECK AIRBAG MAIN HARNESS (FRONT SENSOR BUS RH).
   1. Turn the ignition switch to OFF, disconnect the battery ground cable, and wait for 60 seconds or more.
   2. Remove the instrument panel lower cover and column cover, and disconnect the connectors (AB7) and (AB2).
   3. Remove the console front panel and disconnect the connector (AB9).
   4. Disconnect the connector (AB66) from knee airbag module.
   5. Disconnect the connectors (AB6, AB17, AB18) from airbag control module.
   6. Connect the connector (1AG) in the test harness AG to the connectors (AB6, AB17, AB18).
   7. Disconnect the connector (AB16) from the front sub sensor RH, and then connect the connector (1H) in the test harness H to connector (AB16).
   8. Measure the resistance between connector (4AG) in the test harness AG and connector (3H) in the test harness H.

      Connector & terminal

      (4AG) No. 14 - (3H) No. 5:

      (4AG) No. 12 - (3H) No. 6:

   Is the resistance less than 10 Ω?

   Yes:  Go to  3.

   No:  Replace the airbag main harness along with body harness.

3. CHECK AIRBAG MAIN HARNESS (FRONT SENSOR BUS RH).

   Measure the resistance between connector (4AG) in the test harness AG and chassis ground, and the resistance between connector (4AG) terminals in the test harness AG.

   Connector & terminal

   (4AG) No. 12 - Chassis ground:

   (4AG) No. 14 - Chassis ground:

   (4AG) No. 12 - (4AG) No. 14:

   Is the resistance 1 MΩ or more?

   Yes:  Go to  4.

   No:  Replace the airbag main harness along with body harness.

4. CHECK AIRBAG CONTROL MODULE.
   1. Connect all connectors.
   2. Clear the memory. Refer to AIRBAG SYSTEM (DIAGNOSTICS)>CLEAR MEMORY MODE .
   3. Perform the Inspection Mode, Refer to AIRBAG SYSTEM (DIAGNOSTICS)>INSPECTION MODE .
   4. Read the DTC. (Current malfunction) Refer to AIRBAG SYSTEM (DIAGNOSTICS)>READ DIAGNOSTIC TROUBLE CODE (DTC) .

   Is DTC B1613 displayed?

   Yes:  Replace the front sub sensor RH. Refer to AIRBAG SYSTEM>FRONT SUB SENSOR>REMOVAL . Replace the airbag control module if not operating normally even after replacing the sensor, Refer to AIRBAG SYSTEM>AIRBAG CONTROL MODULE>REMOVAL .

   No:  Go to  5.

5. CHECK FOR ANY OTHER DTC ON DISPLAY.

   Read the DTC. (Current malfunction) Refer to AIRBAG SYSTEM (DIAGNOSTICS)>READ DIAGNOSTIC TROUBLE CODE (DTC) .

   Is any other DTC displayed?

   Yes:  Perform the diagnosis for other displayed DTCs. Refer to AIRBAG SYSTEM (DIAGNOSTICS)>LIST OF DIAGNOSTIC TROUBLE CODE (DTC) .

   No:  Finish the diagnosis.
