Oil Pan And Strainer: Installation

WARNING: This page is about a different variant/trim than selected.

NOTE: Before installing the oil pan, clean the mating surface of oil pan and engine block.

Install the clutch housing cover.
Tightening torque:

5 N.m (0.5 kgf-m, 3.7 ft-lb)
Make sure that the seals (A) are installed securely on the baffle plate in a direction as shown in the figure below.
NOTE: Use a new seal.

Courtesy of SUBARU OF AMERICA, INC.
Install the baffle plate.
Tightening torque:

6.4 N.m (0.7 kgf-m, 4.7 ft-lb)
Install the oil strainer to cylinder block.
NOTE: Use new O-rings.

Tightening torque:

10 N.m (1.0 kgf-m, 7.4 ft-lb)
Tighten the oil strainer stay together with the baffle plate.
Tightening torque:

6.4 N.m (0.7 kgf-m, 4.7 ft-lb)

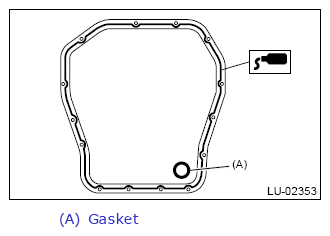

Apply liquid gasket to the mating surfaces of oil pan, and install the oil pan.
NOTE:
- Use a new gasket.
- Install within 5 min. after applying liquid gasket.
Liquid gasket:

THREE BOND 1217G (Part No. K0877Y0100), THREE BOND 1217H or equivalent

Courtesy of SUBARU OF AMERICA, INC.

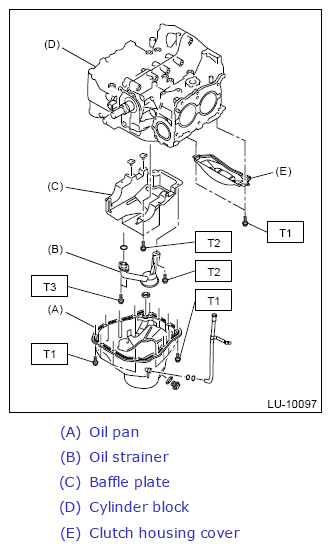

Tighten the bolts which install oil pan to cylinder block.
Tightening torque:

T1: 5 N.m (0.5 kgf-m, 3.7 ft-lb)

T2: 6.4 N.m (0.7 kgf-m, 4.7 ft-lb)

T3: 10 N.m (1.0 kgf-m, 7.4 ft-lb)

Courtesy of SUBARU OF AMERICA, INC.
Lower the engine onto front crossmember.
Install the nuts which hold the engine mounting to the front crossmember.
NOTE: Use a new nut.

Tightening torque:

60 N.m (6.1 kgf-m, 44.3 ft-lb)

Courtesy of SUBARU OF AMERICA, INC.
Install the front exhaust pipe. Refer to EXHAUST (STI)>FRONT EXHAUST PIPE>INSTALLATION .
Install the under cover. Refer to EXTERIOR/INTERIOR TRIM>FRONT UNDER COVER>INSTALLATION .
Lower the vehicle.
CAUTION: When lowering the vehicle, lower the lift up device and wire ropes at the same time.
Remove the lifting device and wire ropes.

Courtesy of SUBARU OF AMERICA, INC.

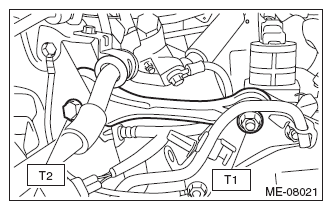

Install the pitching stopper.
Tightening torque:

T1: 50 N.m (5.1 kgf-m, 36.9 ft-lb)

T2: 58 N.m (5.9 kgf-m, 42.8 ft-lb)

Courtesy of SUBARU OF AMERICA, INC.
Install the radiator upper brackets.
Tightening torque:

12 N.m (1.2 kgf-m, 8.9 ft-lb)

Courtesy of SUBARU OF AMERICA, INC.
Install the air intake boot.
Tightening torque:

2.5 N.m (0.3 kgf-m, 1.8 ft-lb)

Courtesy of SUBARU OF AMERICA, INC.
Install the intercooler. Refer to INTAKE (INDUCTION) (STI)>INTERCOOLER>INSTALLATION .
Install the air intake duct. Refer to INTAKE (INDUCTION) (STI)>AIR INTAKE DUCT>INSTALLATION .
Connect the battery ground terminal.
Refill the engine oil. Refer to LUBRICATION (STI)>ENGINE OIL>REPLACEMENT .
