Engine Oil Cooler: Removal

WARNING: This page is about a different variant/trim than selected.
CAUTION: If engine oil is spilt onto the exhaust pipe, wipe it off with cloth to avoid emission of smoke or causing a fire.
  1. Drain engine coolant. Refer to COOLING (STI)>ENGINE COOLANT>REPLACEMENT>DRAINING OF ENGINE COOLANT .
  2. Remove the engine oil filter. Refer to LUBRICATION (STI)>ENGINE OIL FILTER>REMOVAL .

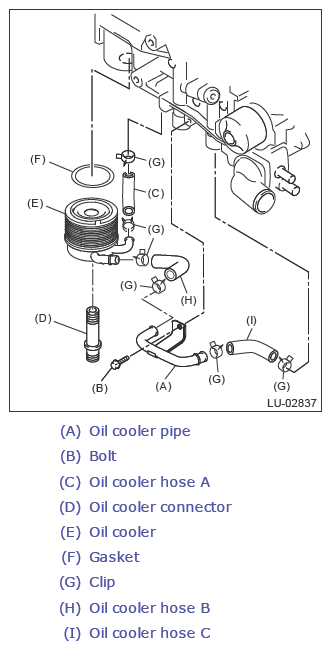

  3. Remove the bolt (B) holding the oil cooler pipe (A) to the oil pump.
  4. Remove the oil cooler pipe (A), oil cooler hose A (C), oil cooler hose B (H), and oil cooler hose C (I).
  5. Remove the oil cooler connector (D) and oil cooler (E).
G13258204Courtesy of SUBARU OF AMERICA, INC.
