Crank Sprocket: Installation

WARNING: This page is about a different variant/trim than selected.

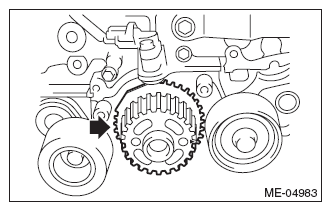

  1. Install the crank sprocket.
    G07911987Courtesy of SUBARU OF AMERICA, INC.
  2. Install the timing belt. Refer to MECHANICAL (STI)>TIMING BELT>INSTALLATION .
  3. Install the timing belt cover. Refer to MECHANICAL (STI)>TIMING BELT COVER>INSTALLATION .
  4. Install the crank pulley. Refer to MECHANICAL (STI)>CRANK PULLEY>INSTALLATION .
