Transfer Driven Gear: Assembly

WARNING: This page is about a different variant/trim than selected.
  1. Using the ST, install the taper roller bearing (transmission case side).
    ST 499757002 INSTALLER
    CAUTION:
    • Do not apply pressure in excess of 10 kN (1 ton, 1.1 US ton, 1.0 Imp ton).
    • Apply transmission gear oil onto sliding or revolving surfaces before installation.
    NOTE: Be careful when handling because the taper roller bearing and the outer race are used as a set.

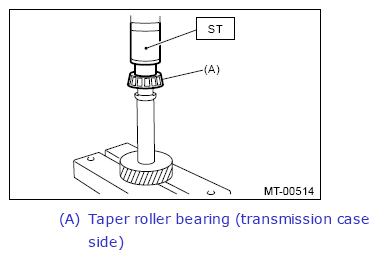

    G13261847Courtesy of SUBARU OF AMERICA, INC.
  2. Using the ST, install the taper roller bearing (extension case side).
    ST1 398177700 INSTALLER
    ST2 899864100 REMOVER
    CAUTION:
    • Do not apply pressure in excess of 10 kN (1 ton, 1.1 US ton, 1.0 Imp ton).
    • Apply transmission gear oil onto sliding or revolving surfaces before installation.
    NOTE: Be careful when handling because the taper roller bearing and the outer race are used as a set.

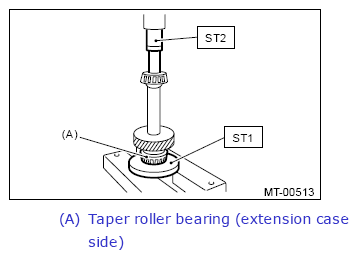

    G13261848Courtesy of SUBARU OF AMERICA, INC.
