Neutral Position Switch: Removal

WARNING: This page is about a different variant/trim than selected.
  1. Remove the manual transmission assembly from the vehicle. Refer to MANUAL TRANSMISSION AND DIFFERENTIAL (6MT) (TY85)>MANUAL TRANSMISSION ASSEMBLY>REMOVAL .

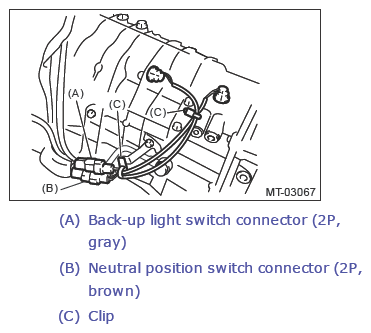

  2. Disconnect the connector and clip of the neutral position switch.
    G13261797Courtesy of SUBARU OF AMERICA, INC.

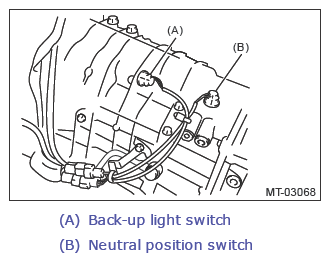

  3. Remove the neutral position switch.
    G13261798Courtesy of SUBARU OF AMERICA, INC.
