Main Shaft Assembly: Disassembly

WARNING: This page is about a different variant/trim than selected.

NOTE: Individual coupling sleeves and synchronizer hubs meet at a specified position. Before disassembly, mark the meeting position of the coupling sleeve and synchronizer hub.

Affix the ST to the work table.

ST 18664AA000 BASE
Flatten the tab of the lock nut.

Set the main shaft assembly to the ST, and remove the lock nut and lock washer.

ST1	18665AA000	HOLDER
ST2	18664AA000	BASE

NOTE: Use a 38 mm socket wrench.

Courtesy of SUBARU OF AMERICA, INC.

Remove the main shaft assembly from the ST.

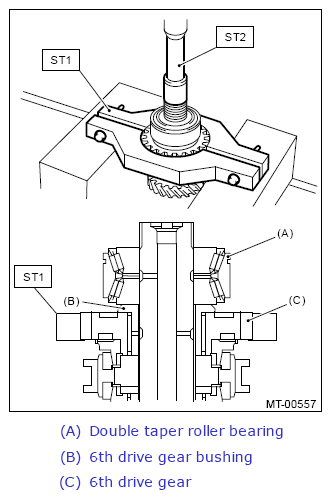

Set the ST1 to the 6th drive gear, and use a press to remove the double taper roller bearing and outer race, 6th drive gear bushing and 6th drive gear.

ST1	18722AA010	REMOVER
ST2	899864100	REMOVER

Courtesy of SUBARU OF AMERICA, INC.

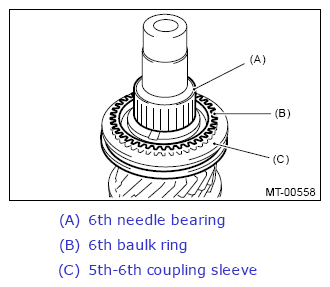

Remove the 5th-6th coupling sleeve, 6th needle bearing and 6th baulk ring.

Courtesy of SUBARU OF AMERICA, INC.

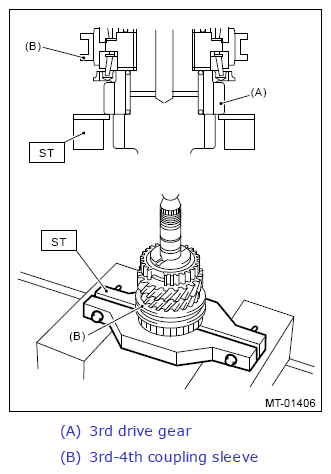

Set the ST to the 3rd drive gear, and use a press to remove individual parts.

ST 18720AA000 REMOVER

Courtesy of SUBARU OF AMERICA, INC.
