Differential Side Retainer

WARNING: This page is about a different variant/trim than selected.
  1. Remove the O-rings.
    G10269212Courtesy of SUBARU OF AMERICA, INC.
  2. Remove the oil seal.
    G10269213Courtesy of SUBARU OF AMERICA, INC.

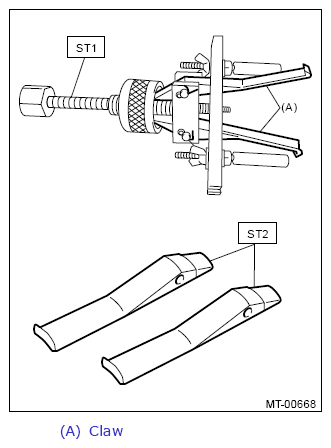

  3. Remove the claw of ST1, and attach the claw of ST2.
    ST1 398527700 PULLER ASSY
    ST2 18760AA000 CLAW
    G13262013Courtesy of SUBARU OF AMERICA, INC.

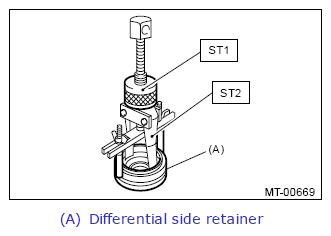

  4. Using the ST, remove the taper roller bearing outer race.
    ST1 398527700 PULLER ASSY
    ST2 18760AA000 CLAW
    G13262014Courtesy of SUBARU OF AMERICA, INC.
