Driven Gear Assembly: Disassembly

WARNING: This page is about a different variant/trim than selected.

NOTE: Individual coupling sleeves and synchronizer hubs meet at a specified position. Before disassembly, mark the meeting position of the coupling sleeve and synchronizer hub.

Affix the ST to the work table.

ST 18664AA000 BASE
Flatten the tab of the lock nut.

Attach ST3 to the lock nut, set the driven gear assembly to the ST, and remove the lock nut.

ST1	18666AA000	HOLDER
ST2	18664AA000	BASE
ST3	18620AA000	ADAPTER WRENCH

Courtesy of SUBARU OF AMERICA, INC.

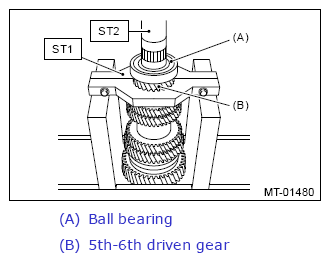

Attach ST1 to the 6th driven gear, then remove the ball bearing and 5th-6th driven gear.

ST1	18723AA000	REMOVER
ST2	499877000	RACE 4-5 INSTALLER

Courtesy of SUBARU OF AMERICA, INC.

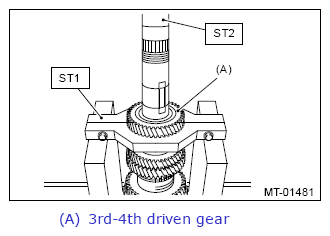

Attach ST1 to the 4th driven gear, then remove the 3rd-4th driven gear.

ST1	18723AA000	REMOVER
ST2	499877000	RACE 4-5 INSTALLER

Courtesy of SUBARU OF AMERICA, INC.

Remove the key.

Courtesy of SUBARU OF AMERICA, INC.
Remove the 2nd driven gear.

Courtesy of SUBARU OF AMERICA, INC.

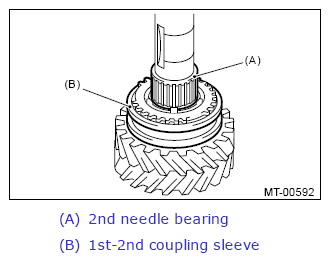

Remove the 2nd needle bearing and 1st-2nd coupling sleeve.

Courtesy of SUBARU OF AMERICA, INC.

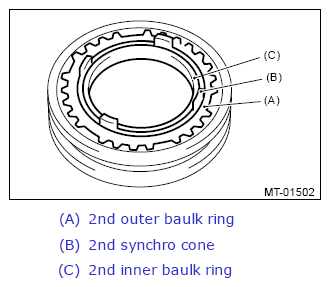

Remove the 2nd outer baulk ring, 2nd synchro cone and 2nd inner baulk ring.

Courtesy of SUBARU OF AMERICA, INC.

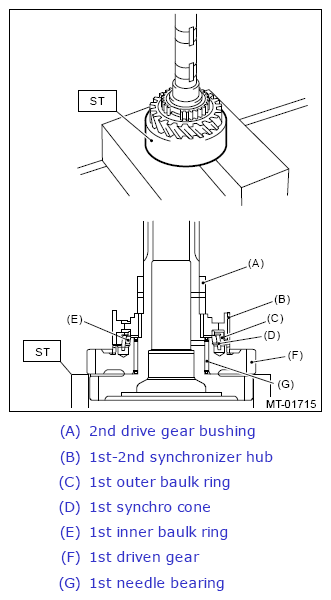

Using the ST, remove individual parts.

ST 18754AA000 REMOVER

Courtesy of SUBARU OF AMERICA, INC.
