Radiator Sub Fan And Fan Motor: Removal
WARNING: This page is about a different variant/trim than selected.
- Disconnect the ground cable from battery.
- Lift up the vehicle.
- Remove the under cover. Refer to EXTERIOR/INTERIOR TRIM>FRONT UNDER COVER>REMOVAL .

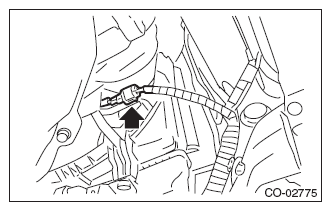

- Disconnect the connector from the sub fan motor.
- Lower the vehicle.
- Remove the air intake duct. Refer to INTAKE (INDUCTION) (STI)>AIR INTAKE DUCT>REMOVAL .
- Remove the bolts which secure the radiator sub fan motor assembly and the over flow pipe.
- Raise the radiator sub fan motor assembly slightly, remove the pin at the lower part of the radiator sub fan motor assembly from the radiator hole, and remove the radiator sub fan motor assembly from the lower side of the vehicle.
