Radiator Main Fan And Fan Motor: Removal
WARNING: This page is about a different variant/trim than selected.
- Disconnect the ground cable from battery.
- Lift up the vehicle.
- Remove the under cover. Refer to EXTERIOR/INTERIOR TRIM>FRONT UNDER COVER>REMOVAL .

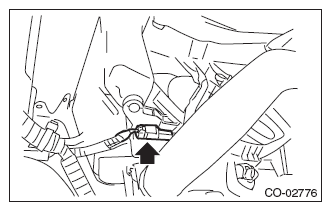

- Disconnect the connector from the main fan motor.
- Lower the vehicle.
- Remove the air intake duct. Refer to INTAKE (INDUCTION) (STI)>AIR INTAKE DUCT>REMOVAL .
- Remove the reservoir tank. Refer to COOLING (STI)>RESERVOIR TANK>REMOVAL .
- Remove the bolts which secure the radiator main fan motor assembly and the over flow pipe.
- Remove the radiator main fan motor assembly from the upper side of the vehicle.
