Center Exhaust Pipe: Disassembly

WARNING: This page is about a different variant/trim than selected.
  1. Remove the rear oxygen sensor from the center exhaust pipe (rear). Refer to FUEL INJECTION (FUEL SYSTEMS) (STI)>REAR OXYGEN SENSOR>REMOVAL .
  2. Remove the center exhaust pipe upper cover.

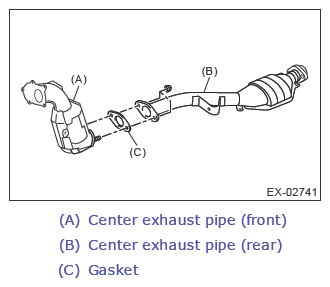

  3. Remove the center exhaust pipe (rear) from the center exhaust pipe (front).
G13258090Courtesy of SUBARU OF AMERICA, INC.
