Center Exhaust Pipe: Assembly

WARNING: This page is about a different variant/trim than selected.

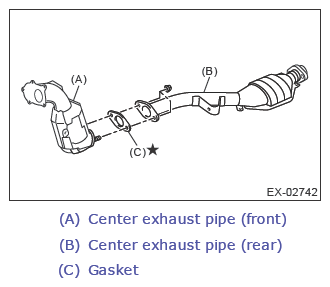

Assemble the center exhaust pipe (rear) to the center exhaust pipe (front).
NOTE: Use a new gasket.

Tightening torque:

42.5 N.m (4.3 kgf-m, 31.3 ft-lb)

Courtesy of SUBARU OF AMERICA, INC.
Install the center exhaust pipe upper cover.
Tightening torque:

13 N.m (1.3 kgf-m, 9.6 ft-lb)
Install the rear oxygen sensor to the center exhaust pipe (rear). Refer to FUEL INJECTION (FUEL SYSTEMS) (STI)>REAR OXYGEN SENSOR>INSTALLATION .
