Check Manifold Temperature Sensor Unit

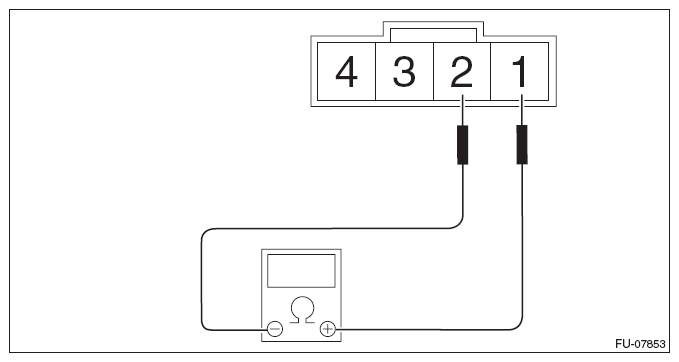

  1. Measure the resistance between engine coolant temperature sensor terminals.
    G09479768Courtesy of SUBARU OF AMERICA, INC.
    Temperature Terminal No. Standard
    -20°C (-4°F) 1 and 2 14.7±2.2 kΩ
    25°C (77°F) 2.0±0.2 kΩ
    60°C (140°F) 0.59±0.09 kΩ
