Chain Cover: Installation

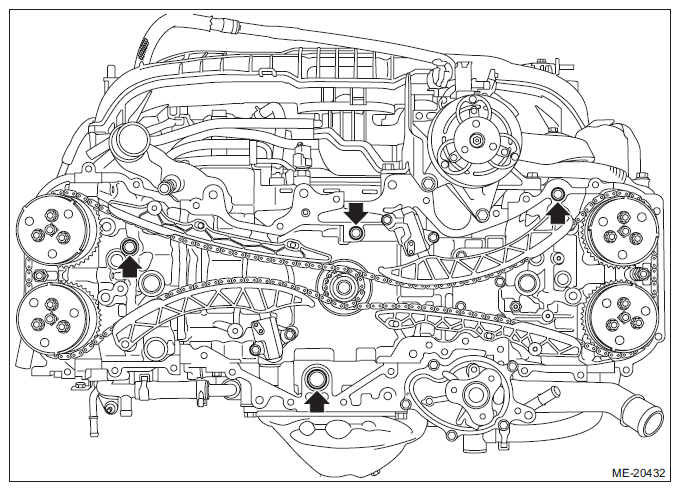

  1. Install the O-rings to cylinder head RH, cylinder head LH, cylinder block LH and oil pan upper.
    NOTE:
    • Use new O-rings.
    • Apply a coat of engine oil to the O-rings.
    G11576277Courtesy of SUBARU OF AMERICA, INC.

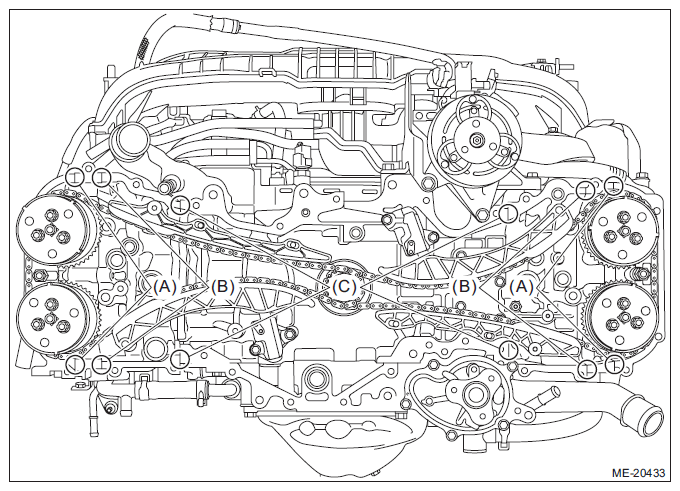

  2. Apply liquid gasket if there are gaps between front camshaft cap and cam carrier (A), cam carrier and cylinder head (B), and cylinder head and cylinder block (C) as shown in the figure.

    Liquid gasket:

    THREE BOND 1217G (Part No. K0877Y0100), THREE BOND 1217H or equivalent

    G11576281Courtesy of SUBARU OF AMERICA, INC.

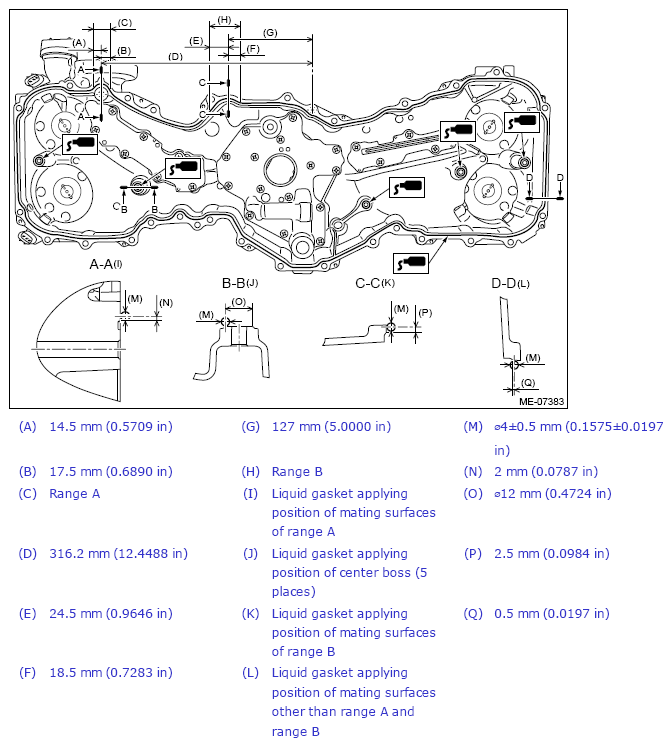

  3. Apply liquid gasket to the chain cover mating surface and center boss (5 places) as shown in the figure.
    NOTE:
    • Before applying liquid gasket, degrease the old liquid gasket seal surface of the engine and chain cover.
    • Install within 5 min. after applying liquid gasket.

    Liquid gasket:

    THREE BOND 1217G (Part No. K0877Y0100), THREE BOND 1217H or equivalent

    Liquid gasket applying diameter:

    4±0.5 mm (0.1575±0.0197 in)

    G13259051Courtesy of SUBARU OF AMERICA, INC.

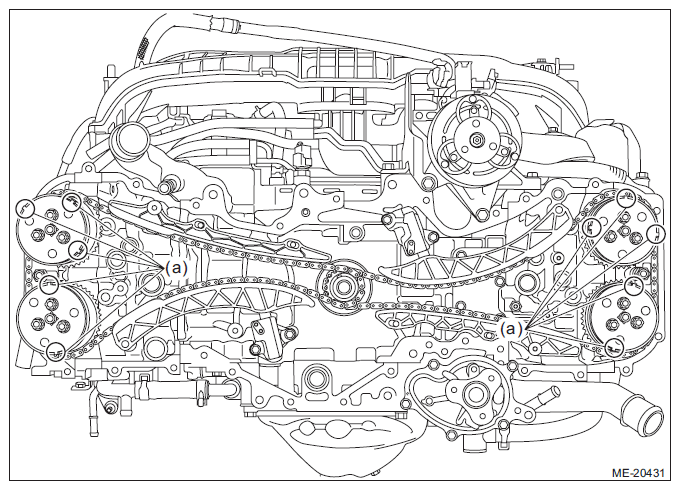

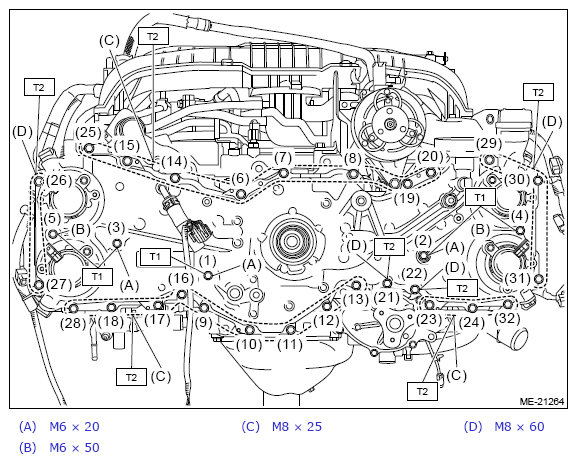

  4. Set the chain cover, and tighten the bolts in numerical order as shown in the figure.
    CAUTION: The chain cover may contact the protrusion (a) of cam sprocket sensor plate and cause damage. When setting the chain cover, move the chain cover horizontally and set it while taking care not to contact with the cam sprocket.
    G11576275Courtesy of SUBARU OF AMERICA, INC.

    Tightening torque:

    T1: 10 N.m (1.0 kgf-m, 7.4 ft-lb)

    T2: 25 N.m (2.5 kgf-m, 18.4 ft-lb)

    G13259053Courtesy of SUBARU OF AMERICA, INC.

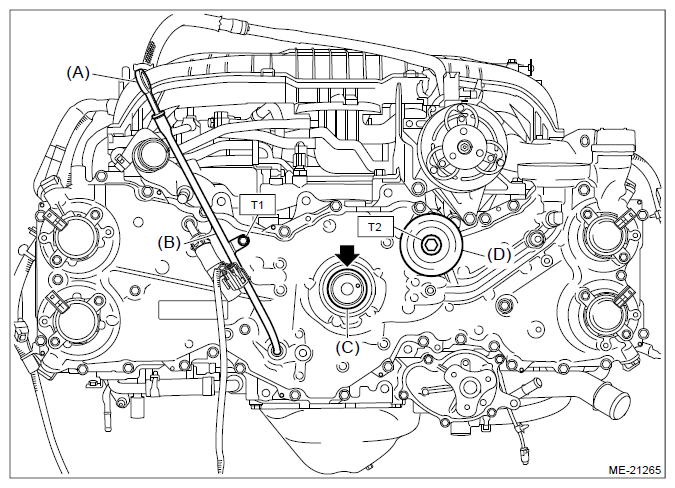

  5. Install the idler pulley (D), crank pulley boss (C) and oil level gauge guide (B), and insert the oil level gauge (A).
    NOTE:
    • When installing the idler pulley, be careful of the idler pulley cover direction.
      G13259054Courtesy of SUBARU OF AMERICA, INC.
    • Use a new O-ring to the oil level gauge guide.
    • Apply a light coat of engine oil to the O-rings of the oil level gauge guide and the oil level gauge.

    Tightening torque:

    T1: 6.4 N.m (0.7 kgf-m, 4.7 ft-lb)

    T2: 36 N.m (3.7 kgf-m, 26.6 ft-lb)

    G12441583Courtesy of SUBARU OF AMERICA, INC.

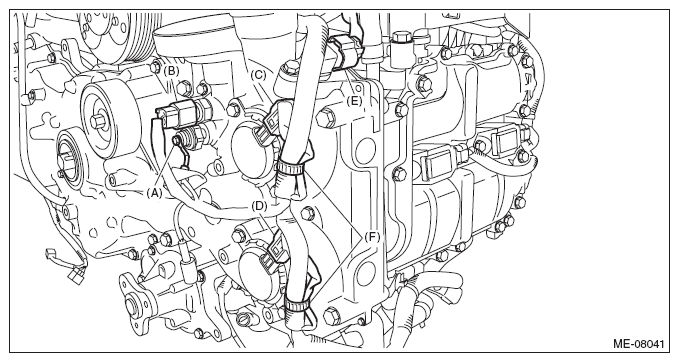

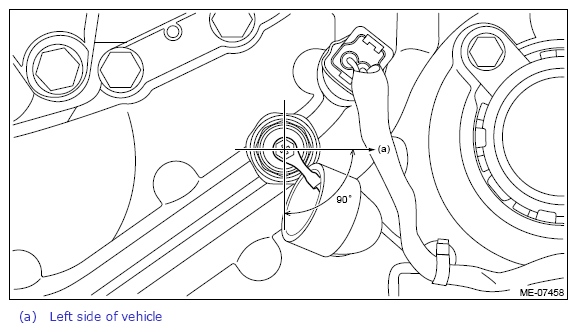

  6. Connect the terminal (A) to the oil pressure switch, connector (B) to the engine oil temperature sensor, connector (C) to the intake oil control solenoid LH, connector (D) to the exhaust oil control solenoid LH, and the connector (E) to the intake camshaft position sensor LH, and fix the engine wiring harness using the clip (F).
    NOTE: The oil pressure switch harness must be positioned toward the left lower side of the vehicle within the range of 90°.
    G13259056Courtesy of SUBARU OF AMERICA, INC.

    Tightening torque:

    1.5 N.m (0.2 kgf-m, 1.1 ft-lb)

    G10266746Courtesy of SUBARU OF AMERICA, INC.

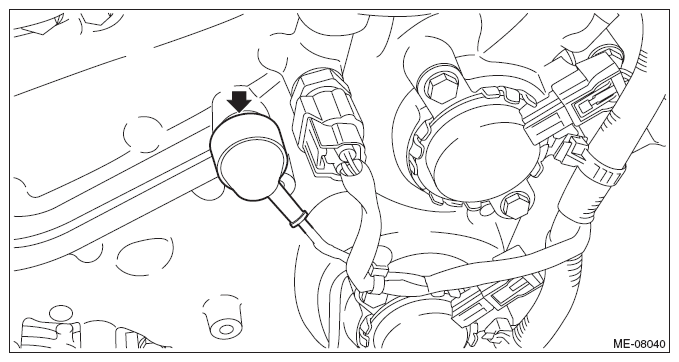

  7. Attach the rubber cap to the oil pressure switch.
    G10266745Courtesy of SUBARU OF AMERICA, INC.

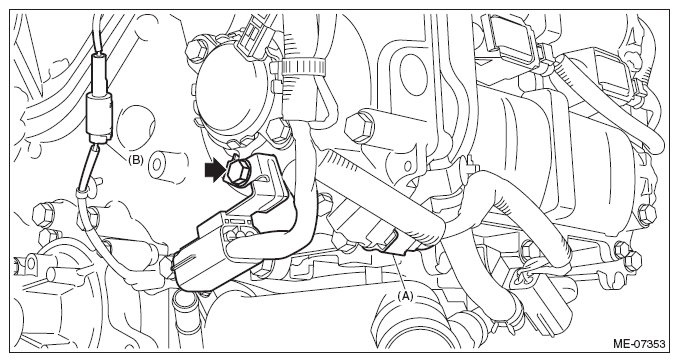

  8. Connect the connector (A) to the exhaust camshaft position sensor LH and the connector (B) to the oil level switch, and install the engine wiring harness stay to the chain cover.

    Tightening torque:

    6.4 N.m (0.7 kgf-m, 4.7 ft-lb)

    G09480278Courtesy of SUBARU OF AMERICA, INC.

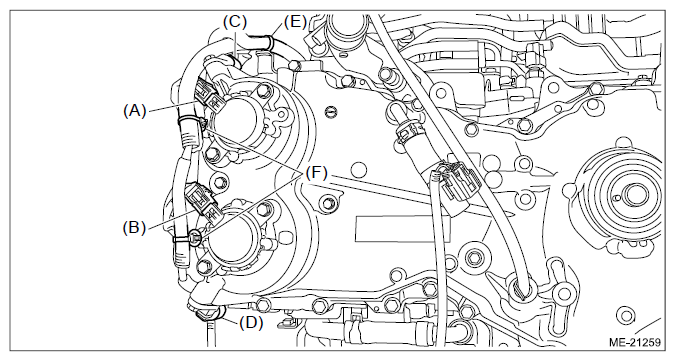

  9. Connect the connector (A) to the intake oil control solenoid RH, connector (B) to the exhaust oil control solenoid RH, connector (C) to the intake camshaft position sensor RH, and the connector (D) to the exhaust camshaft position sensor RH, and then fix the engine wiring harness using the clips (E) and (F).
    G12441566Courtesy of SUBARU OF AMERICA, INC.

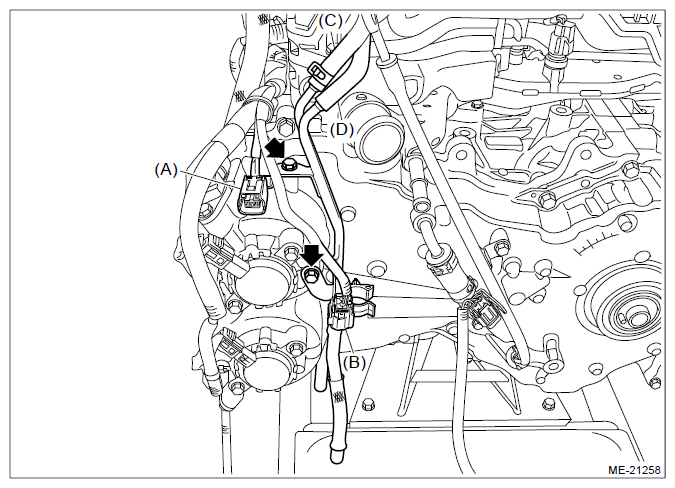

  10. Install the vacuum pipe assembly to the chain cover, and connect the vacuum control hose (C) and vacuum hose (D) to the vacuum pipe assembly.

    Tightening torque:

    6.4 N.m (0.7 kgf-m, 4.7 ft-lb)

  11. Install the connector (A) and connector (B) to the vacuum pipe assembly.
    G12441565Courtesy of SUBARU OF AMERICA, INC.

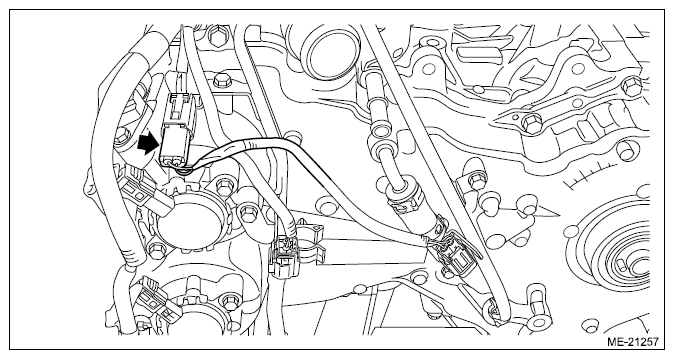

  12. Connect the connector to the engine wiring harness.
    G12441564Courtesy of SUBARU OF AMERICA, INC.

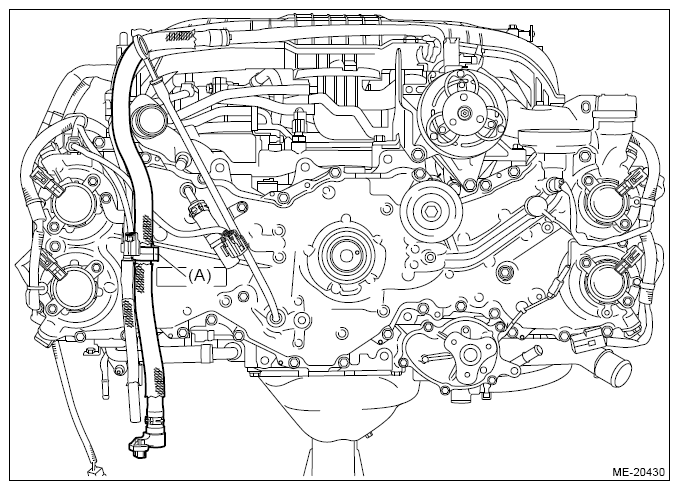

  13. Install the PCV pipe to the clip (A).
    G11266837Courtesy of SUBARU OF AMERICA, INC.

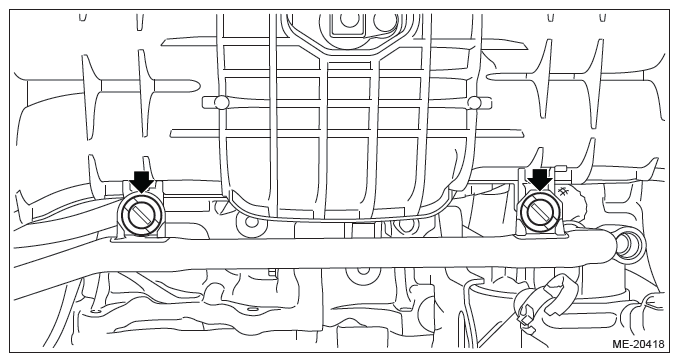

  14. Fix the PCV pipe to the intake manifold using the clip.
    G11266808Courtesy of SUBARU OF AMERICA, INC.
  15. Install the front engine oil cooler pipe assembly. Refer to LUBRICATION (EXCEPT FOR STI)>ENGINE OIL COOLER PIPE>INSTALLATION>FRONT ENGINE OIL COOLER PIPE .
  16. Attach the engine oil cooler. Refer to LUBRICATION (EXCEPT FOR STI)>ENGINE OIL COOLER>INSTALLATION .
  17. Install the crank pulley. Refer to MECHANICAL (EXCEPT FOR STI)>CRANK PULLEY>INSTALLATION .
  18. Install the water pump pulley. Refer to COOLING (EXCEPT FOR STI)>WATER PUMP>INSTALLATION>WATER PUMP .
  19. Install the generator. Refer to STARTING/CHARGING SYSTEMS (EXCEPT FOR STI)>GENERATOR>INSTALLATION .
  20. Install the V-belts. Refer to MECHANICAL (EXCEPT FOR STI)>V-BELT>INSTALLATION>V-BELT .
  21. Fill engine oil. Refer to LUBRICATION (EXCEPT FOR STI)>ENGINE OIL>REPLACEMENT .
  22. When working on the vehicle
    NOTE: When working on the vehicle, perform the following steps also.
    1. Install the front exhaust pipe. Refer to EXHAUST (EXCEPT FOR STI)>FRONT EXHAUST PIPE>INSTALLATION .
    2. Install the intake duct No. 1 and intake duct No. 2. Refer to INTAKE (INDUCTION) (EXCEPT FOR STI)>INTAKE DUCT>INSTALLATION>INTAKE DUCT NO. 1 . Refer to INTAKE (INDUCTION) (EXCEPT FOR STI)>INTAKE DUCT>INSTALLATION>INTAKE DUCT NO. 2 .
    3. Install the radiator. Refer to COOLING (EXCEPT FOR STI)>RADIATOR>INSTALLATION .
