Intake Duct And Intercooler

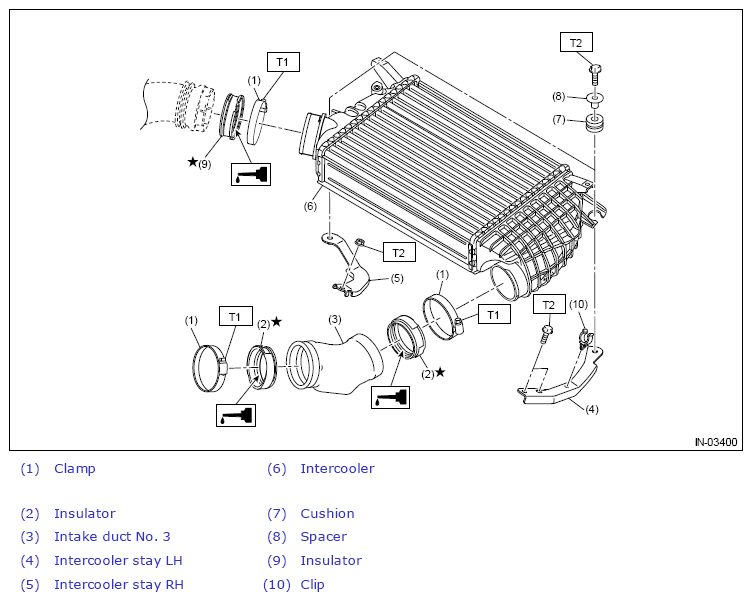

Fig 1: Explode View Of Intake Duct And Intercooler Components (With Torque Specifications)
G13258784Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 3 (0.3, 2.2)

T2: 16 (1.6, 11.8)
