Exhaust System (Except For STI): Muffler: Removal

1. Lift up the vehicle.

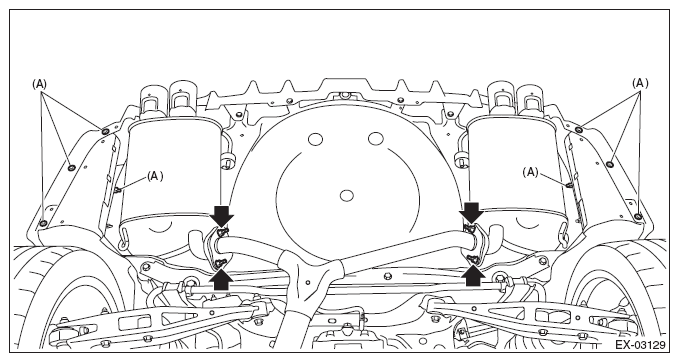

2. Remove the clip (A) which holds the cover - rear bumper side to the vehicle and rear bumper.
   NOTE: This procedure is required to facilitate the removal/installation of the muffler.
3. Remove the bolts and self-locking nuts which secure the rear exhaust pipe to the muffler.

   Courtesy of SUBARU OF AMERICA, INC.

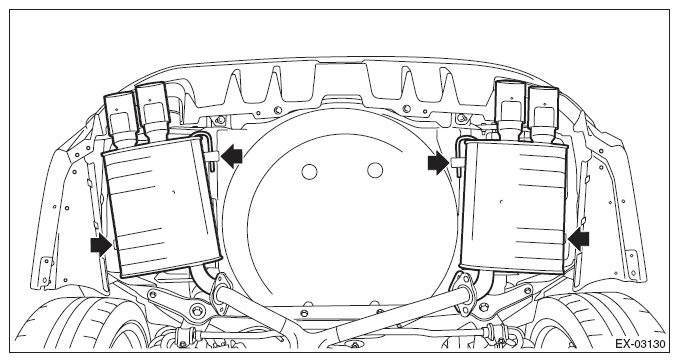

4. Apply a coat of spray type lubricant to the mating area of cushion rubber.
5. Remove the muffler from the cushion rubber.
   CAUTION: Be careful not to drop the muffler during removal.

   Courtesy of SUBARU OF AMERICA, INC.

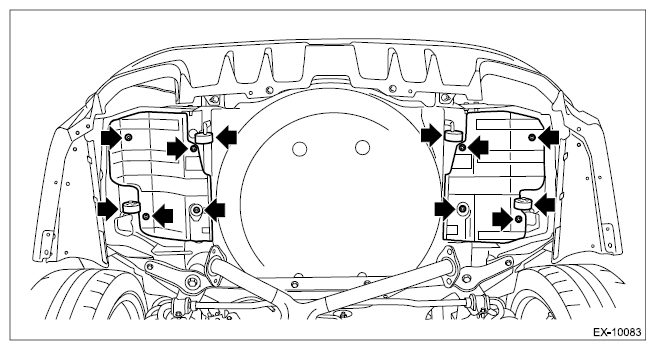

6. Remove the cushion rubber and rear exhaust cover from the vehicle.

Courtesy of SUBARU OF AMERICA, INC.
