Exhaust System (Except For STI): Muffler: Installation

Install in the reverse order of removal.

NOTE:

Use a new gasket and self-locking nut.
After assembling, degrease the lubricant which was applied to the cushion rubber while removing/installing.

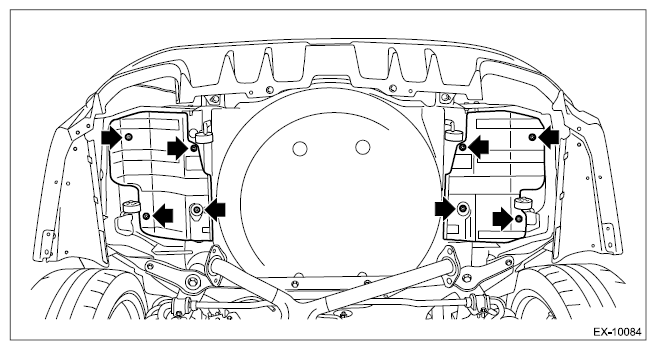

Tightening torque:

10 N.m (1.0 kgf-m, 7.4 ft-lb)

Courtesy of SUBARU OF AMERICA, INC.

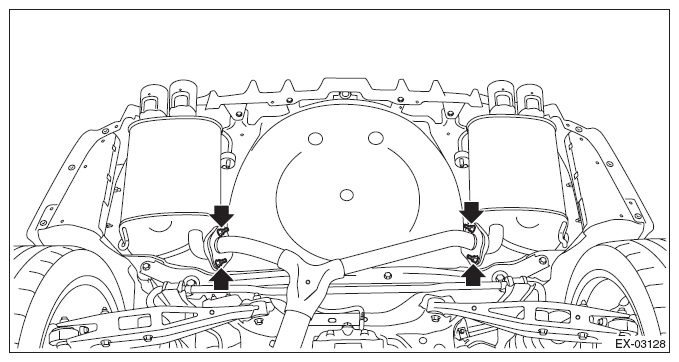

Tightening torque:

48 N.m (4.9 kgf-m, 35.4 ft-lb)

Courtesy of SUBARU OF AMERICA, INC.

EXHAUST (EXCEPT FOR STI)> Muffler
