Heat Shield Cover

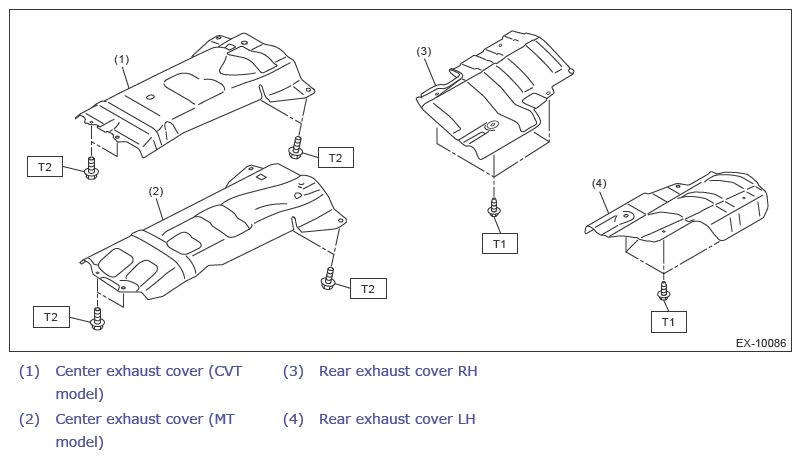

Fig 1: Components Of Heat Shield Cover (With Torque Specifications)

G13259387

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 10 (1.0, 7.4)

T2: 18 (1.8, 13.3)
