Front Exhaust Pipe: Assembly

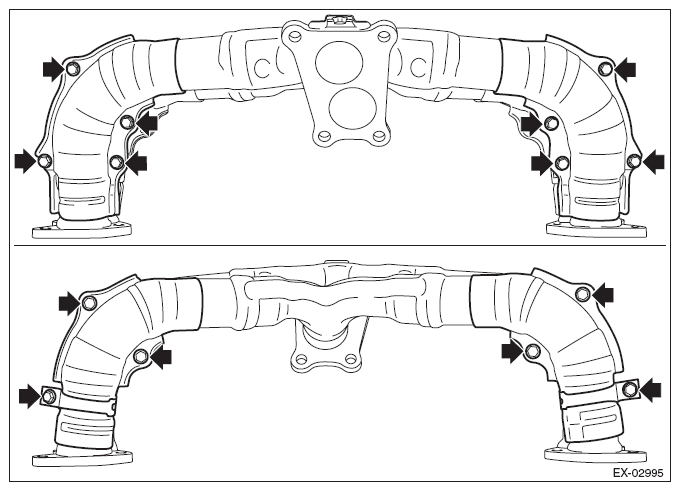

1. Install the exhaust pipe cover to the front exhaust pipe.

   Tightening torque:

   7.4 N.m (0.8 kgf-m, 5.4 ft-lb)

   Courtesy of SUBARU OF AMERICA, INC.

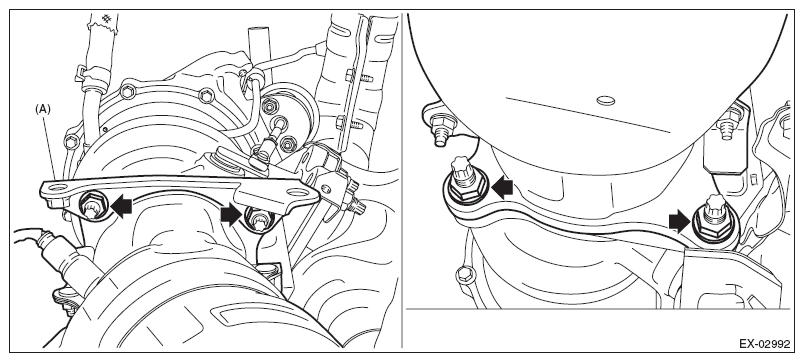

2. Install the front exhaust pipe together with the turbocharger stay (A) to the turbocharger.
   NOTE: Use a new gasket and self-locking nut.

   Tightening torque:

   42.5 N.m (4.3 kgf-m, 31.3 ft-lb)

   Courtesy of SUBARU OF AMERICA, INC.

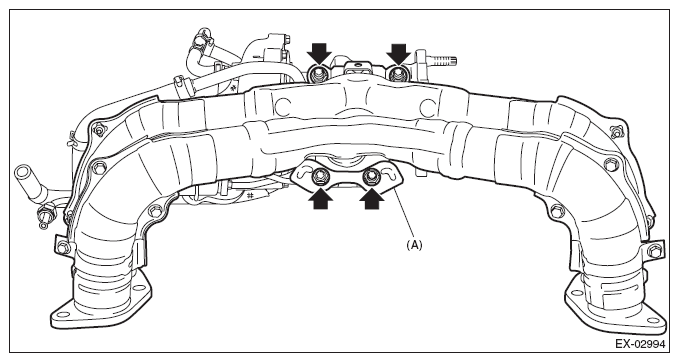

3. Install the exhaust pipe cover to the front exhaust pipe.

   Tightening torque:

   7.4 N.m (0.8 kgf-m, 5.4 ft-lb)

   Courtesy of SUBARU OF AMERICA, INC.

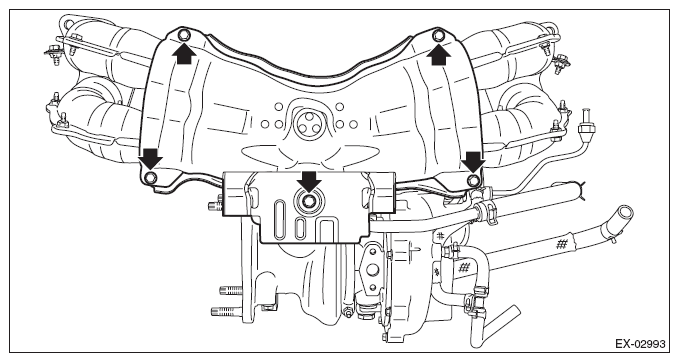

4. Install the center exhaust pipe (front) together with the turbocharger stay (A) to the turbocharger.
   NOTE: Use a new gasket and self-locking nut.

   Tightening torque:

   42.5 N.m (4.3 kgf-m, 31.3 ft-lb)

   Courtesy of SUBARU OF AMERICA, INC.

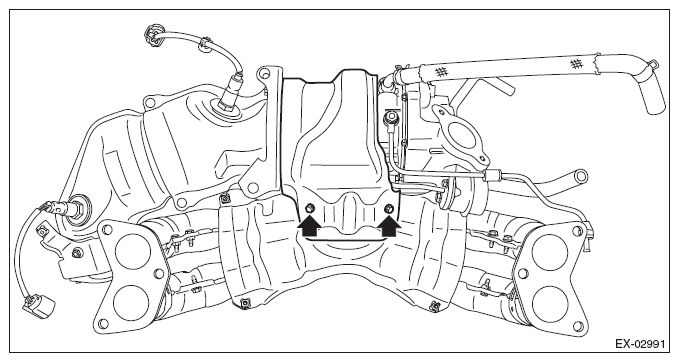

5. Install the exhaust pipe cover to the turbocharger stay.

Tightening torque:

7.4 N.m (0.8 kgf-m, 5.4 ft-lb)

Courtesy of SUBARU OF AMERICA, INC.
