Oil Pressure Switch: Removal

CAUTION: If the engine oil is spilt over exhaust pipe or the under cover, wipe it off with cloth to avoid emitting smoke or causing a fire.
  1. Disconnect the ground terminal from battery sensor. Refer to NOTE>NOTE>BATTERY .

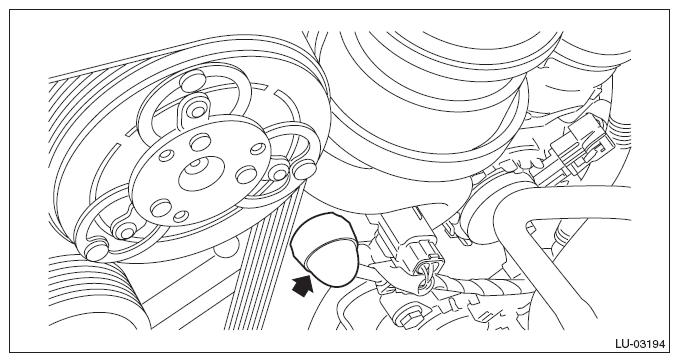

  2. Remove the rubber cap.
    G10267309Courtesy of SUBARU OF AMERICA, INC.

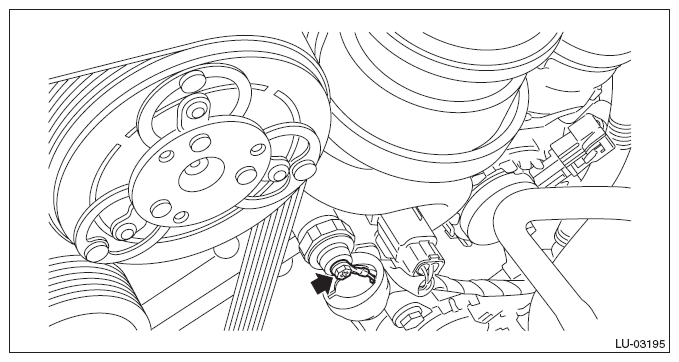

  3. Disconnect the terminal from oil pressure switch.
    G10267310Courtesy of SUBARU OF AMERICA, INC.

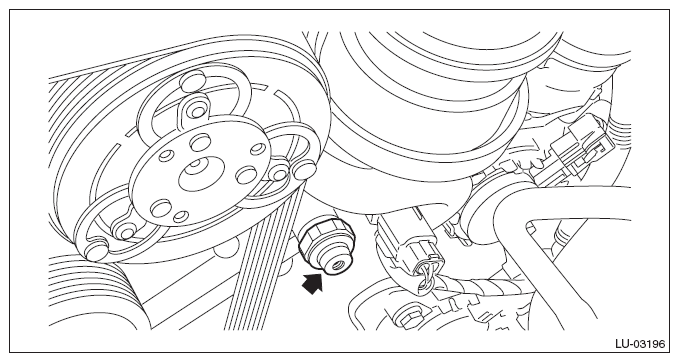

  4. Remove the oil pressure switch.
    CAUTION: Catch the engine oil using cloth to prevent it from splashing.
    G10267311Courtesy of SUBARU OF AMERICA, INC.
