Oil Pressure Switch: Installation

Apply liquid gasket to the oil pressure switch threads.
Liquid gasket:

THREE BOND 1324 (Part No. 004403042) or equivalent

Courtesy of SUBARU OF AMERICA, INC.
Install the oil pressure switch to the chain cover.
Tightening torque:

18 N.m (1.8 kgf-m, 13.3 ft-lb)

Courtesy of SUBARU OF AMERICA, INC.
Connect the terminal to the oil pressure switch.

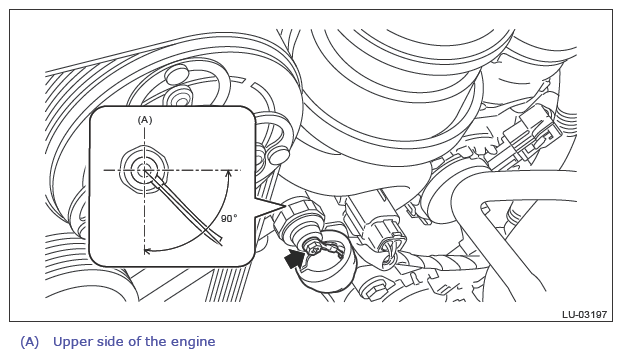

NOTE: The oil pressure switch harness must be tightened within the range of a 90° angle as shown below.

Tightening torque:

1.5 N.m (0.2 kgf-m, 1.1 ft-lb)

Courtesy of SUBARU OF AMERICA, INC.
Attach the rubber cap.

Courtesy of SUBARU OF AMERICA, INC.
Connect the ground terminal to battery sensor. Refer to NOTE>NOTE>BATTERY .
