Oil Pipe

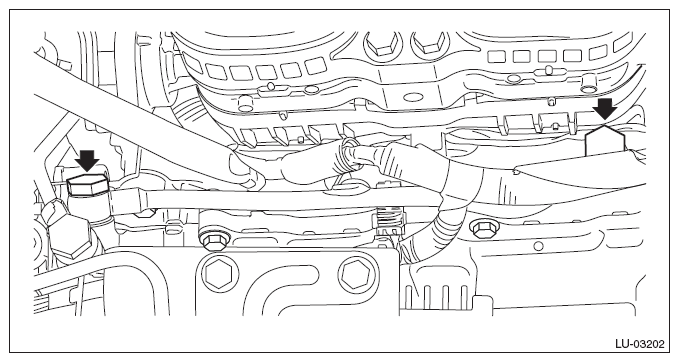

- Temporarily tighten the union bolts which secure the oil pipes to the intake rear camshaft cap RH and the cam carrier RH.NOTE: Use a new gasket.

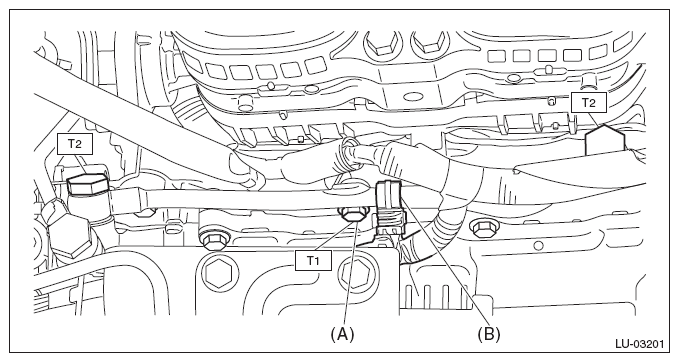

- Install the bolt (A) which secures the oil pipe to the cam carrier RH, and install the clip (B) which secures the engine wiring harness to the oil pipe.
Tightening torque:
T1: 6.4 N.m (0.7 kgf-m, 4.7 ft-lb)
- Tighten the union bolts which secure the oil pipes to the intake rear camshaft cap RH and the cam carrier RH.
Tightening torque:
T2: 31 N.m (3.2 kgf-m, 22.9 ft-lb)
- Install the intake duct No. 2. Refer to INTAKE (INDUCTION) (EXCEPT FOR STI)>INTAKE DUCT>INSTALLATION>INTAKE DUCT NO. 2 .
- After installing, check the engine oil level and replenish it if necessary. Refer to LUBRICATION (EXCEPT FOR STI)>ENGINE OIL>INSPECTION .
- Install the collector cover. Refer to INTAKE (INDUCTION) (EXCEPT FOR STI)>COLLECTOR COVER>INSTALLATION .
