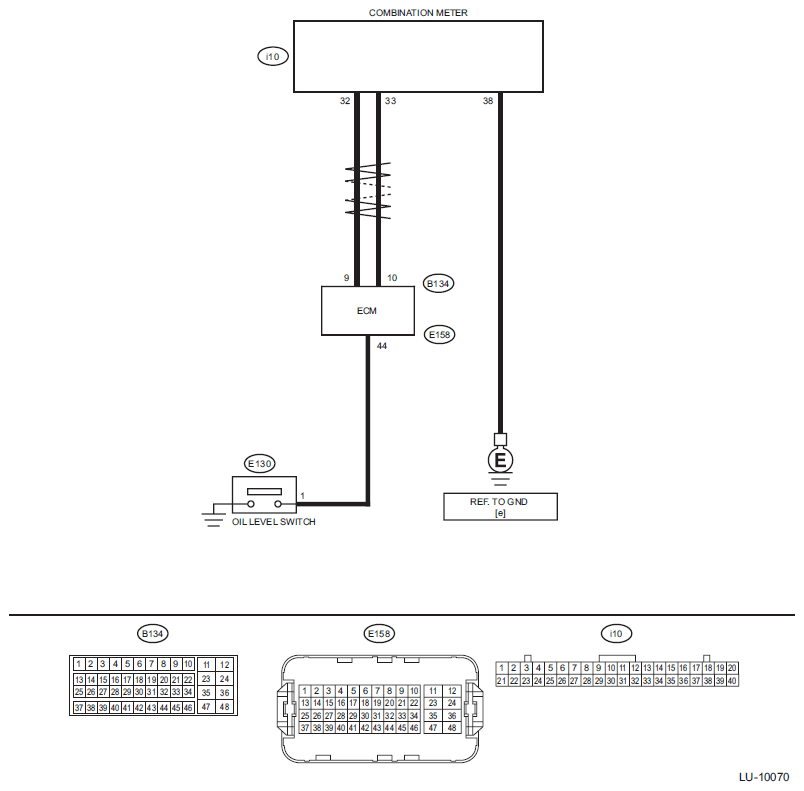

Oil Level Switch: Wiring Diagram
Engine electrical system. Refer to
WIRING SYSTEM>ENGINE ELECTRICAL SYSTEM>WIRING DIAGRAM
.
CAN communication system. Refer to
WIRING SYSTEM>CAN COMMUNICATION SYSTEM>WIRING DIAGRAM
.
Courtesy of SUBARU OF AMERICA, INC.
