Starting System & Charging System (Except For STI): Starter: Disassembly

CAUTION: The starter should be placed through a no-load test whenever it has been overhauled.
  1. Disconnect the cable from the terminal M of the magnet switch assembly.
    G07665119Courtesy of SUBARU OF AMERICA, INC.
  2. Remove the magnet switch assembly from the starter housing assembly.
    G09476690Courtesy of SUBARU OF AMERICA, INC.
  3. Remove screws (A) of the brush holder assembly, and through bolts (B) on both sides, and remove the starter cover assembly.
    G07665121Courtesy of SUBARU OF AMERICA, INC.
  4. Remove the brush holder assembly from the armature assembly.
    NOTE: Hold the brush with your fingers so that the brush spring does not come flying out.
    G07665122Courtesy of SUBARU OF AMERICA, INC.
  5. Remove the armature assembly and yoke assembly from the starter housing assembly together as a single unit.
    G07665123Courtesy of SUBARU OF AMERICA, INC.
  6. Separate the armature assembly and yoke assembly.
    G07665124Courtesy of SUBARU OF AMERICA, INC.
  7. Remove the pinion gear from the internal gear assembly.
    G07665125Courtesy of SUBARU OF AMERICA, INC.
  8. Remove seal rubber (A), plate (B), and seal rubber (C).
    G07665126Courtesy of SUBARU OF AMERICA, INC.

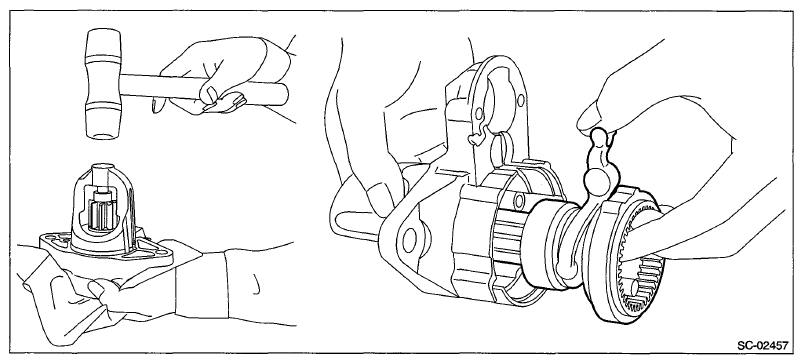

  9. Lightly tap the starter housing assembly with a plastic hammer as shown in the figure, and remove the overrunning clutch, internal gear assembly, shaft and shift lever together as one unit.
    G07665127Courtesy of SUBARU OF AMERICA, INC.
  10. Use the following procedures to remove the overrunning clutch from the shaft.
    1. Use an appropriate tool (such as a fit socket wrench), and remove the stopper from snap ring by lightly tapping the stopper with a plastic hammer.
      G13259684Courtesy of SUBARU OF AMERICA, INC.
    2. Remove snap ring (A) from the shaft, and remove stopper (B).
      G07665129Courtesy of SUBARU OF AMERICA, INC.
    3. Remove the overrunning clutch from the shaft.
      G07665130Courtesy of SUBARU OF AMERICA, INC.
  11. Separate the internal gear assembly and shaft.
    G07665131Courtesy of SUBARU OF AMERICA, INC.
