Starting System & Charging System (Except For STI): Generator: Removal

  1. Remove the collector cover. Refer to INTAKE (INDUCTION) (EXCEPT FOR STI)>COLLECTOR COVER>REMOVAL .
  2. Disconnect the ground terminal from battery sensor. Refer to NOTE>NOTE>BATTERY .
  3. Remove the brake vacuum pump. Refer to BRAKE>BRAKE VACUUM PUMP>REMOVAL .
  4. Remove the V-belts. Refer to MECHANICAL (EXCEPT FOR STI)>V-BELT>REMOVAL>V-BELT .
  5. Remove the collector cover bracket.
    G10267432Courtesy of SUBARU OF AMERICA, INC.
  6. Disconnect the connector (A) and terminal (B) from the generator.
    G09476732Courtesy of SUBARU OF AMERICA, INC.

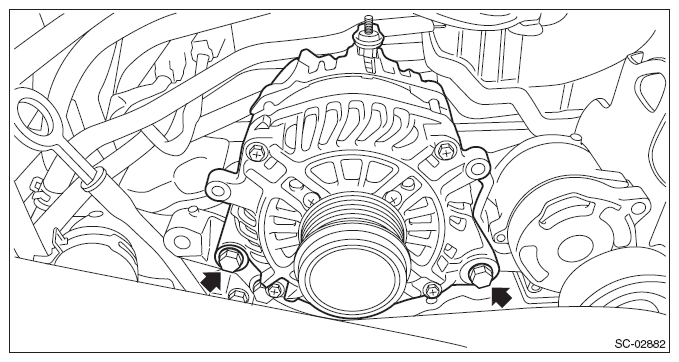

  7. Remove the generator from the generator bracket.
    G09476733Courtesy of SUBARU OF AMERICA, INC.
  8. Remove the V-belt tensioner assembly. Refer to MECHANICAL (EXCEPT FOR STI)>V-BELT>REMOVAL>V-BELT TENSIONER ASSY .

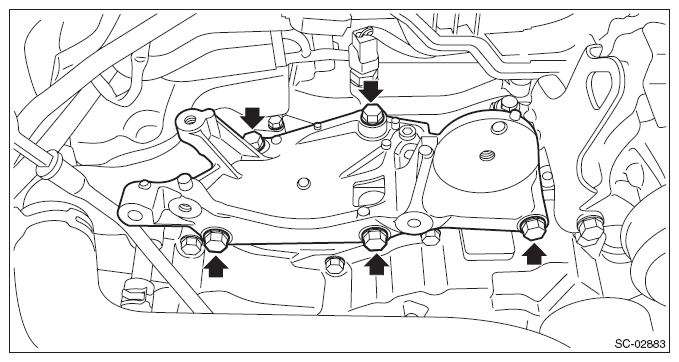

  9. Remove the generator bracket from the engine.
    G09476734Courtesy of SUBARU OF AMERICA, INC.
