Stator Coil

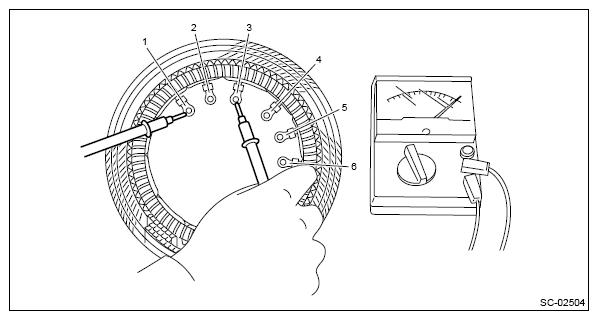

Inspect the continuity between the stator coil terminals. If continuity is not as shown in the table, replace the stator coil.

Courtesy of SUBARU OF AMERICA, INC.

Courtesy of SUBARU OF AMERICA, INC.

Inspect the continuity between the stator coil stator core and lead wire terminals. If there is continuity, replace the stator coil because the stator coil is grounded.

Courtesy of SUBARU OF AMERICA, INC.
