STI Model

NOTE: Before installation, remove mud and foreign matter from the disc brake assembly.

Apply a thin coat of grease to the pad - disc brake rear.
Preparation items:

Grease (pad side (A)): An item contained in the pad kit, Molykote M7439 or equivalent

Grease (pad back (B)): An item contained in the pad kit or equivalent

Courtesy of SUBARU OF AMERICA, INC.

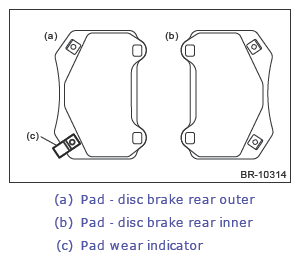

Install the pad - disc brake rear.
NOTE: Install the parts with the pad wear indicator facing downward.

Courtesy of SUBARU OF AMERICA, INC.
Install the cross spring.
Install the pin - disc brake.
Install the rear wheels.
Tightening torque:

120 N.m (12.2 kgf-m, 88.5 ft-lb)
