Brake Pedal

• AT model

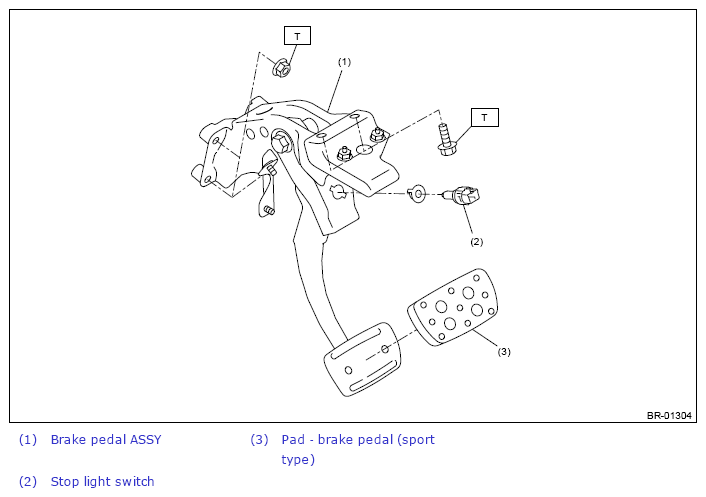

  Fig 1: Components Of Brake Pedal (With Torque Specifications) (AT Model)

  Courtesy of SUBARU OF AMERICA, INC.

  Tightening torque: N-m (kgf-m, ft-lb)

  T: 18 (1.8, 13.3)

• MT model

Fig 2: Components Of Brake Pedal (With Torque Specifications) (MT Model)

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N-m (kgf-m, ft-lb)

T1: 8 (0.8, 5.9)

T2: 18 (1.8, 13.3)
