Front Disc Brake Assembly: Assembly

Check each part. Refer to BRAKE>FRONT DISC BRAKE ASSEMBLY>INSPECTION .
Clean the inside of the caliper body using brake fluid.
Preparation items:

Brake fluid: FMVSS No. 116, DOT3 or DOT4

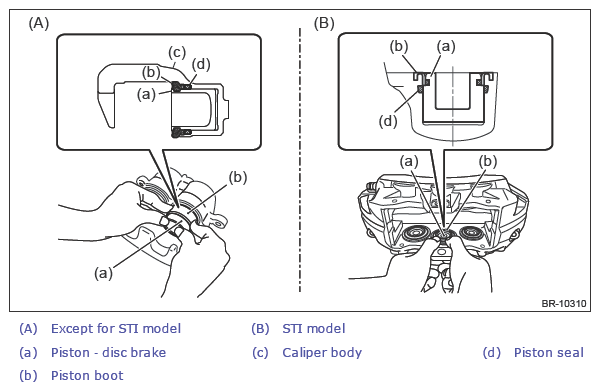

Install the piston seal and the piston - disc brake.
1. Apply a coat of brake fluid to piston seal and install the piston seal to the groove inside caliper body.
2. Apply a coat of brake fluid to the piston sliding part of caliper body and the entire outer surface of the piston - disc brake.
  Preparation items:

  Brake fluid: FMVSS No. 116, DOT3 or DOT4
3. Apply a coat of grease to the piston boot and fit to the groove on the ends of piston - disc brake.
  Preparation items:

  Grease: An item contained in the pad kit or Nippon Grease NIGLUBE RX-2
4. Install the piston - disc brake to the caliper body.
  CAUTION: Do not force the piston - disc brake into the sliding part of caliper body.
Courtesy of SUBARU OF AMERICA, INC.

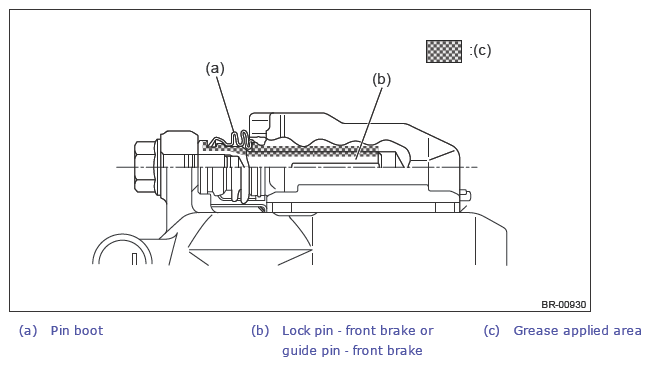

Apply grease contained in the piston seal kit to the lock pin - front brake, the outer surface of guide pin-front brake, the pin sliding part of the support - front disc brake, and the grooves of pin boot. (Except for STI model)
Install the pin boot to the lock pin - front brake and the guide pin - front brake, and insert them into the support - front disc brake. (Except for STI model)
CAUTION: Insert the lock pin - front brake and guide pin - front brake into specified position, and make sure that they slide and seat properly.

Courtesy of SUBARU OF AMERICA, INC.
